VersariX®
Are mobility and flexibility important for your work? If yes, the lightweight and easy-to-use VersariX detector holder (400 g) is the right choice for you. The mounting system, designed in-house at OR Technology, can be attached to nearly all types of doors. The powder-coated mounts can also be fastened to hooks, screws, tree branches and other sturdy structures. The detector is attached to a specialized hook that allows virtually stepless height adjustment. With this system, professional and highly specialized X-ray images can be taken even in confined spaces.
| Fields of application: | Versatile |
| Weight: | Only 400 g |
| Shipping dimensions: | 20 x 15 x 8 cm |

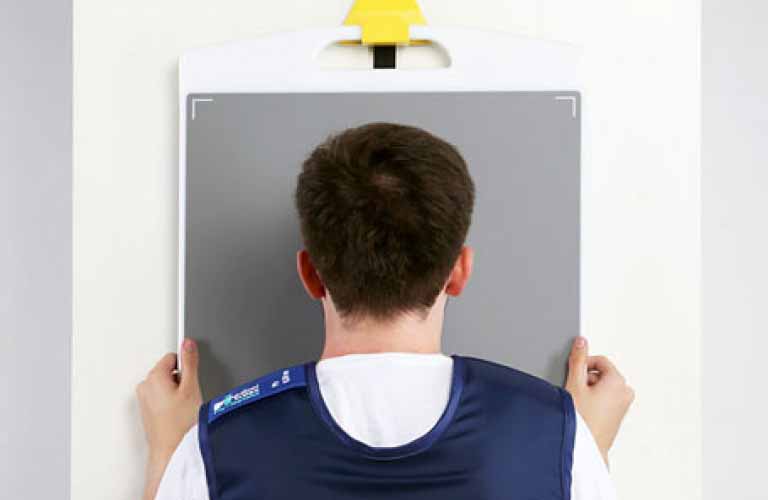

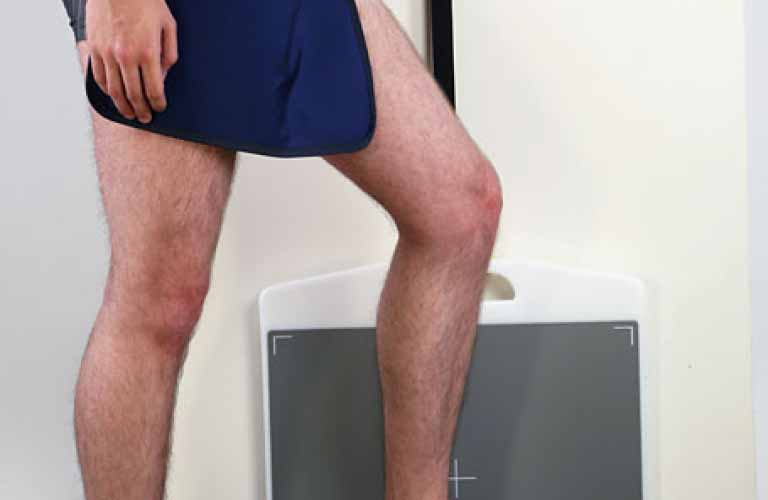

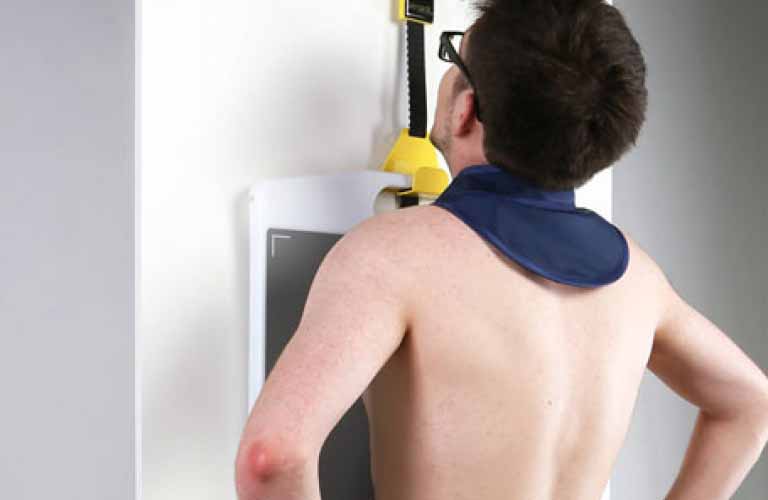

| Suitability: | Ideal for X-ray examinations in sitting and standing position |
| Cleaning: | Easy to clean (disinfectant safe) |
| Made in Germany: | Designed by Oehm and Rehbein |
| Mounting: | Three mounting options |
VersariX functions with all flat panel X-ray detector models, regardless of protective casing and handles, and can be attached to nearly all types of doors using sturdy polypropylene straps. The powder-coated mounts can also be attached to hooks, screws, tree branches and other sturdy structures. The height of the detector can easily be adjusted before or after installation.

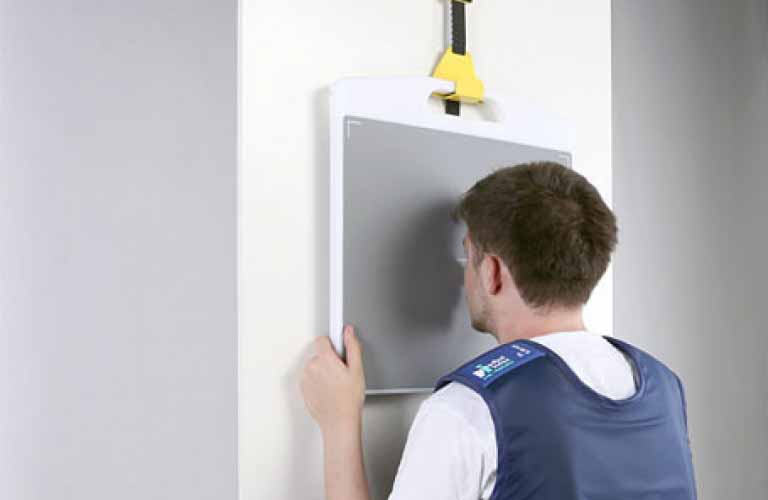

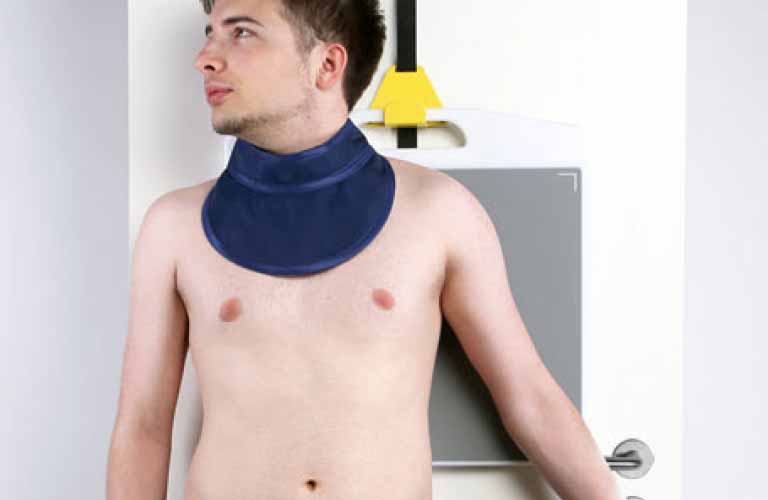

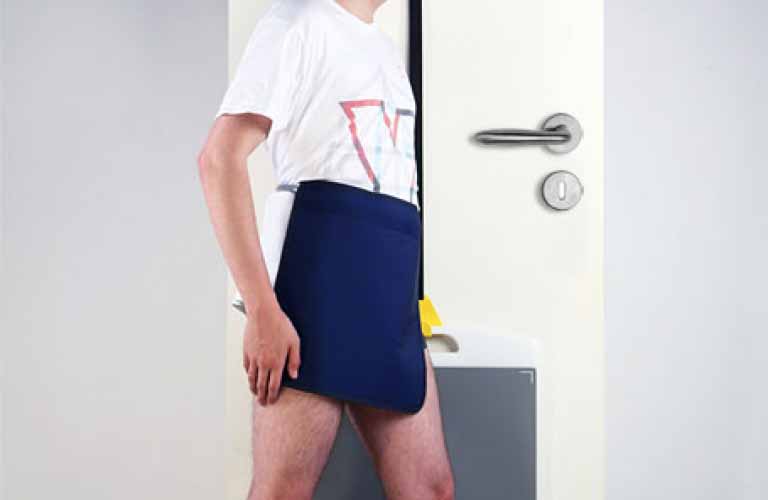

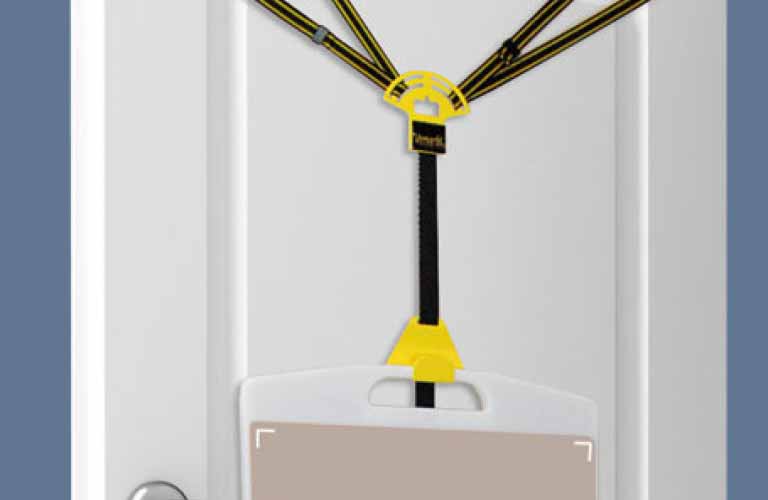

1. Door mount with straps (door can be closed after straps have been attached)
2. Wall mount using existing hooks and screws

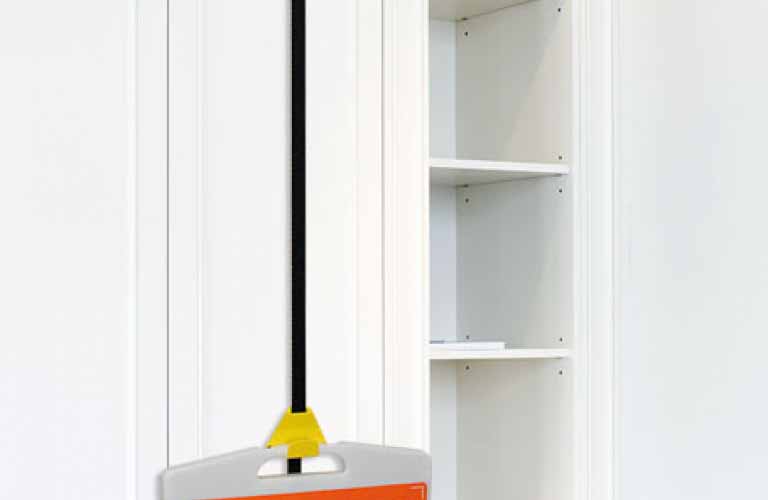

3. Cabinet door mount with bracket (included)
Product information VersariX - the portable mounting system for X-ray detectors

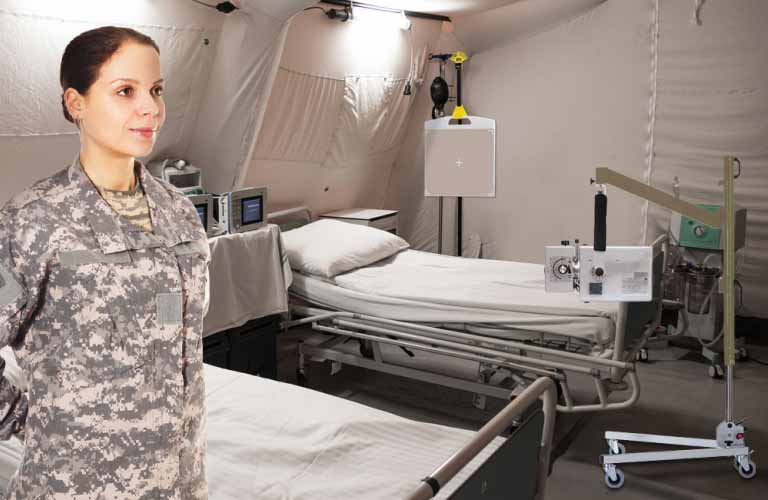

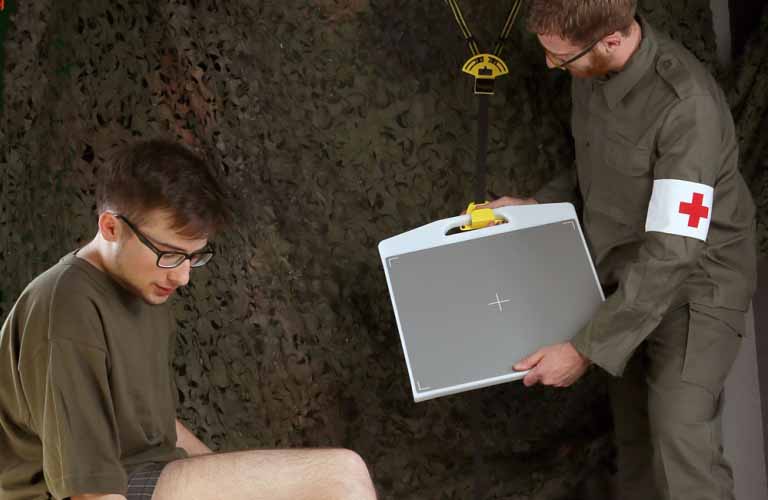

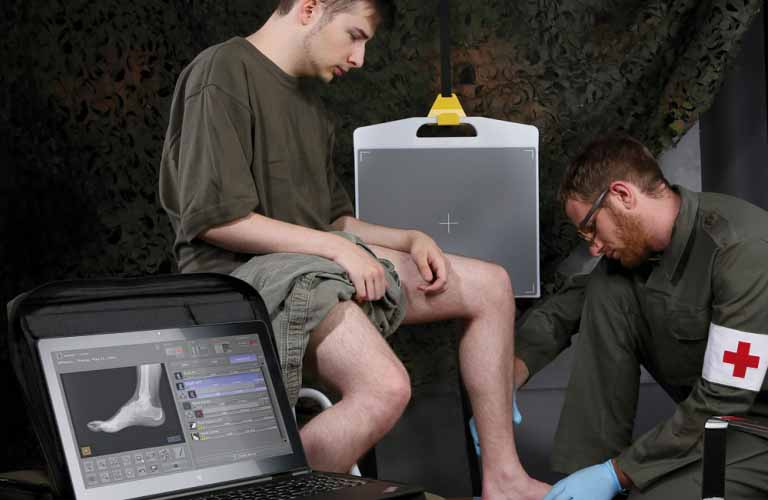

VersariX is THE portable flat panel detector mounting system for X-ray examinations conducted in unusual places such as private residences, old-age homes, medical tents or ships etc.
Resumen de productos Sistemas de rayos X digitales para instalaciones médicas móviles y estacionarias [en inglés]
Sistema digital móvil todo en uno para su centro médico u hospital de campaña · Sistemas digitales portátiles como kit de actualización para equipos de rayos X móviles o fijos ya existentes · Sistema digital estacionario completo de rayos X
| Materials | Specialized straps made of Kevlar reinforced Neopren, powder-coated stainless steel/aluminium, sturdy polypropylene straps |
| Range of height-adjustable detector | > 150 cm |
| Max. tensile load of specialized hook | 10 kg |
| Operating temperature | - 10° C to +45° C |
| Dimensions of transport bag | Approx. 20 x 15 x 8 cm |
| Shipping box dimensions | Approx. 22 x 16 x 10 cm For transport to examinations, you can choose between a sturdy box and a space-saving bag (included) |
| Warranty | 2 years |
