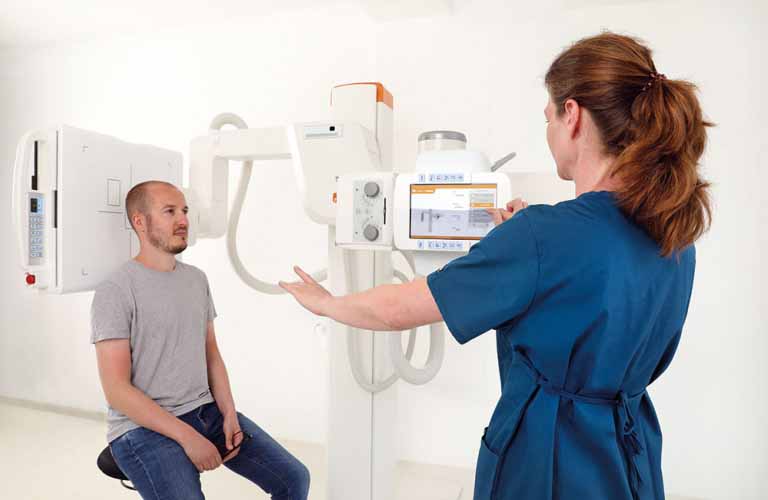

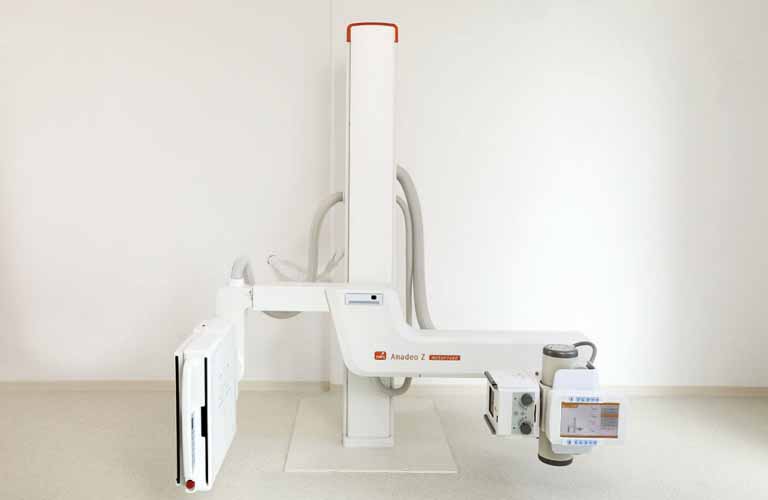

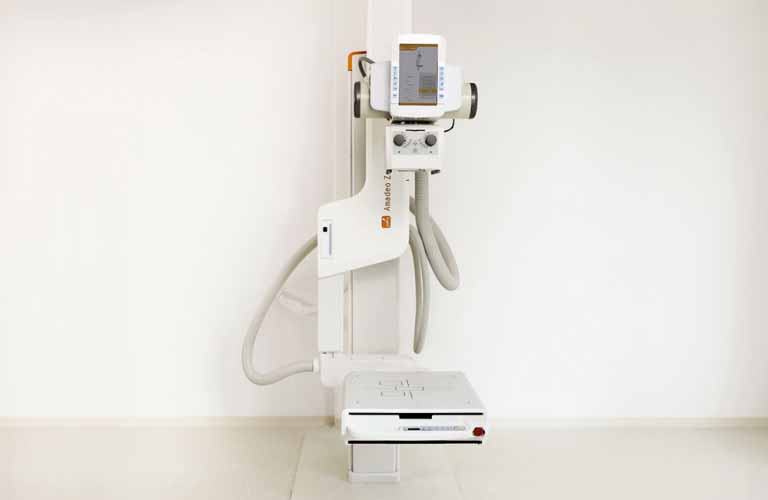

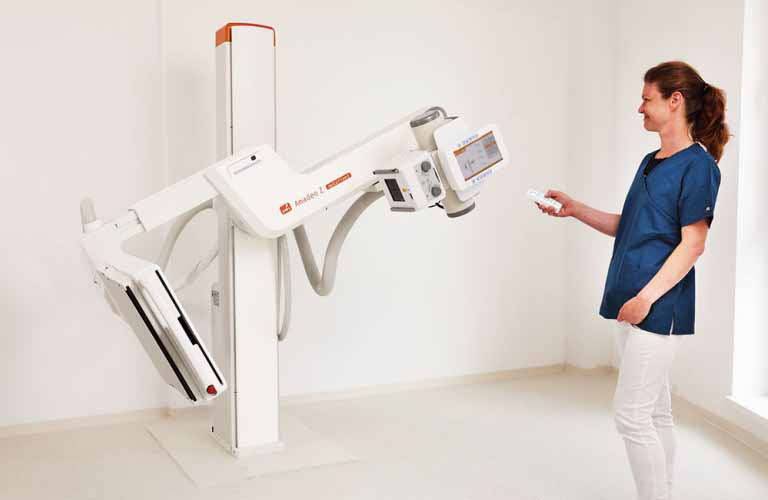

Motorised, digital U-arm X-ray system Amadeo Z motorised for all X-ray exposures in sitting, standing and lying position

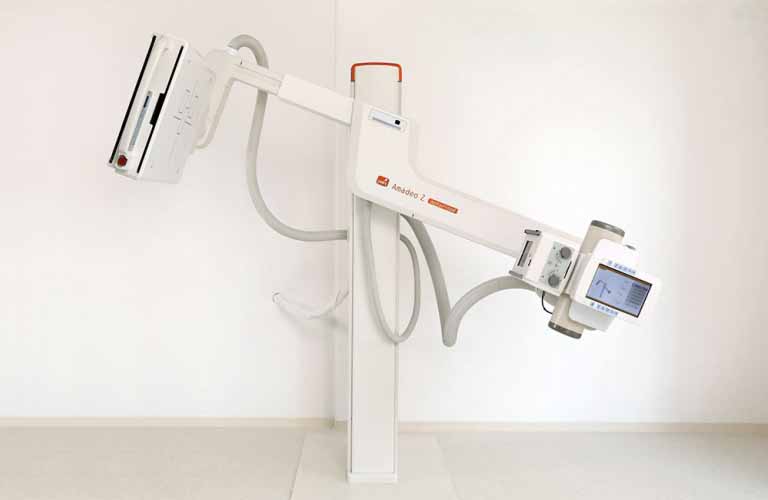

The compact U-arm X-ray system is motorised and designed for low ceiling heights from 2.40 m. Five electric motors allow effortless and accurate positioning of the stand and ensure a wide range of exposures. All radiological settings can be utilised, as well as automated whole spine and whole leg exposures (stitching). All important settings and operating operations are carried out via an integrated 10" touchscreen display console. Frequently used unit positions can be predefined on the 60 available programme slots to ensure fast positioning on the patient.

The digital CsI X-ray detector and the removable grid ensure the best image quality for all images. Intelligent collision sensors guarantee maximum patient protection. Features such as remote control, asynchronous shifting of bucky tray and X-ray tube, easy alignment through automatic 0° position of bucky or stand etc. complete the swivel bracket system.

The optimised workflow saves time and personnel resources. The entire system is controlled via our professional acquisition and diagnostic software dicomPACS®DX-R.







nach oben

Videos: Amadeo Z motorised digital U-arm X-ray machine

Product video

Stitching video





nach oben

Three versions of the Amadeo Z motorised U-arm X-ray system are available:

Amadeo Z-DR motorised:

With a built-in X-ray detector  (43 cm x 43 cm)

Amadeo Z-DR motorised:

with a wireless X-ray detector (35 cm x 43 cm)

Amadeo Z-AX motorised

for use with film/CR cassettes or existing DR system without generator control

nach oben

Features and Benefits of Amadeo Z motorised U-arm X-ray System:

Optimal for small rooms:

designed especially for small rooms (min. height: 2.40 m) - guaranteed through compact design and collision sensors for room height and detector position for recordings on standing, sitting and lying patients

Comfortable working guaranteed:
  • Effortless and precise positioning of the stand thanks to five electric motors

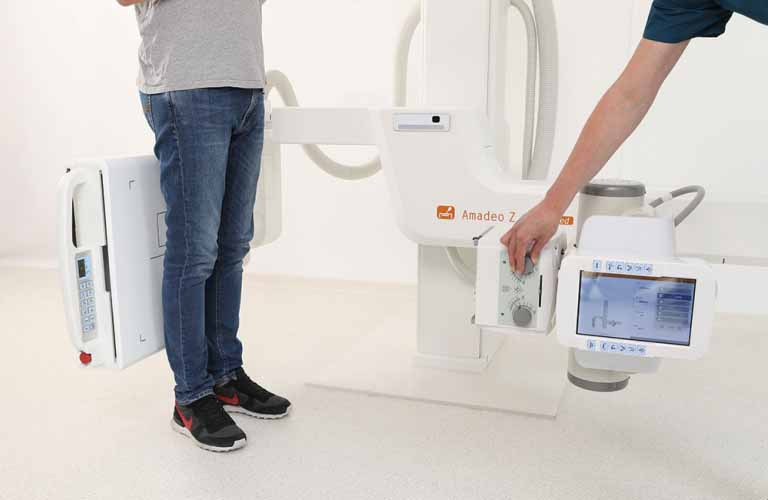

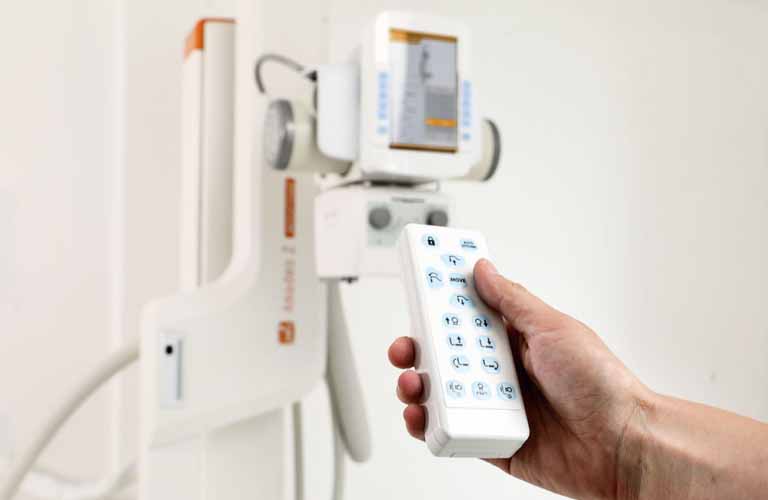

  • Pivot arm can be positioned easily and in seconds via display or remote control

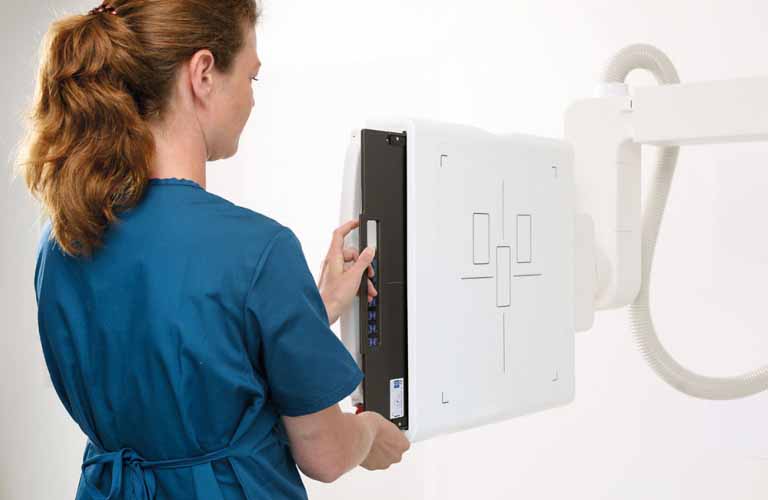

  • Bucky with fixed detector has all control buttons like the display, incl. SID, altitude and RED indicator
Particular specials:
  • Asynchronous displacement of bucky tray and tube
  • Easy straight alignment of bucky or swivel arm through automatic 0° positioning
  • LED light indicator when desired position is reached
  • System can be lowered almost to the floor
Fantastically easy to use:

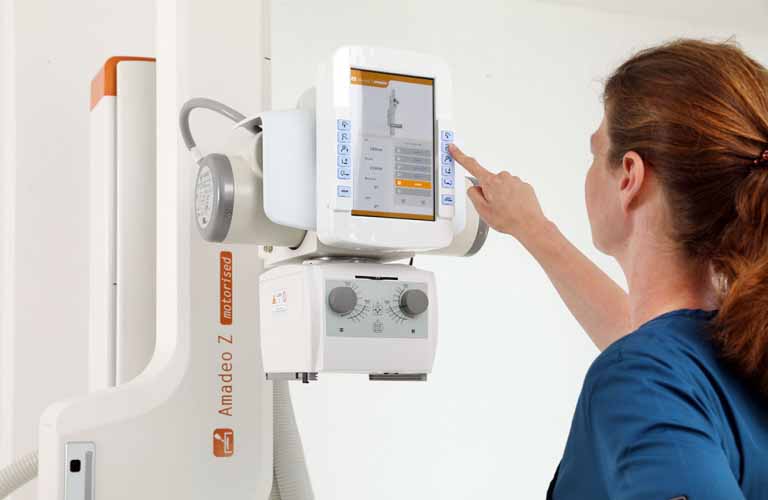

  • Intuitive 10" touchscreen display for simplified system operation
  • 60 preset positions for stand height, alignment and SID for each examination type.
  • Integrated high-frequency X-ray generator, with customised anatomical programming (APR)

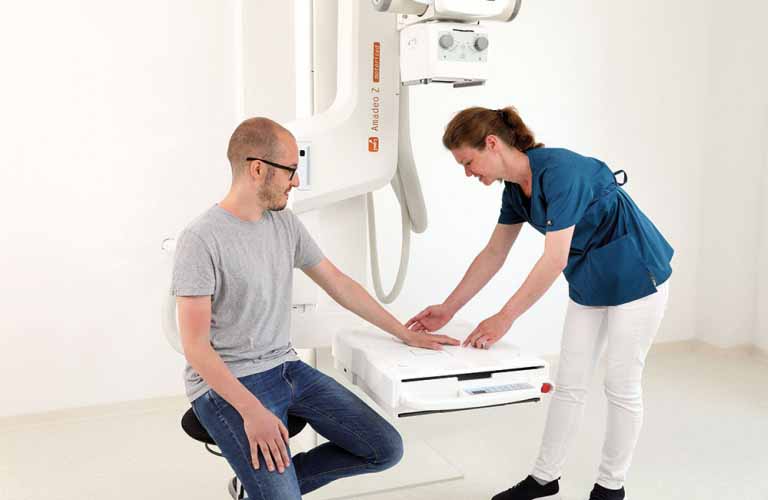

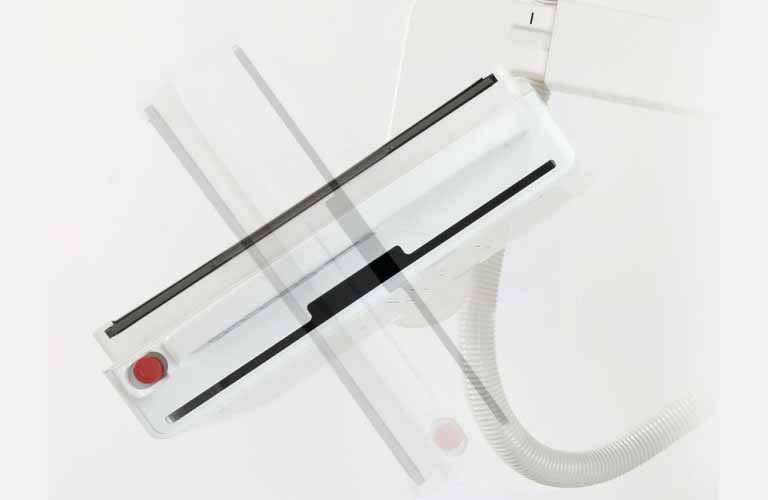

  • Swivelling buckylade with removable grid incl. storage tray
  • Automatic stitching (optional)
Safety for patients and staff:
  • integrated safety functions with emergency stop buttons and collision sensors
Easy to use & worldwide proven X-ray software
  • self-explanatory Oehm and Rehbein acquisition software dicomPACS®DX-R including special measurement functions that can be used free of charge
  • integrated X-ray positioning guide helps choose the perfect positioning
  • integrated diagnostic software offers a worldwide, fast and cost-effective exchange of information (via cloud or e-mail)

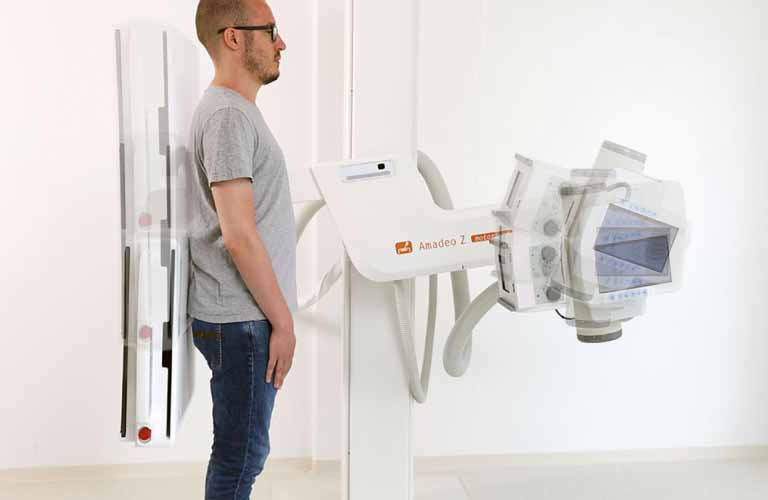

  • The stitching module (optional) creates a single image from separate digital X-ray images. The images are loaded, correctly aligned and merged into one image.
High quality radiographs:

high-quality X-ray detector based on a caesium iodide (CsI) scintillator – top image quality even at low X-ray doses

nach oben

Acquisition and diagnostic software for X-ray images

Acquisition and diagnostic software for X-ray images

At the heart of each Amadeo system is the dicomPACS®DX-R acquisition and diagnostic software with the integrated X-ray positioning guide developed by OR Technology.

The software controls X-ray generators and X-ray units of various manufacturers, providing a smooth and structured workflow. A simple and user friendly GUI (graphical user interface), operated by touchscreen or mouse, completes the system.

The professional dicomPACS®DX-R image processing can be adapted to individual user needs and offers outstanding image quality in human and veterinary medicine. It has been specially developed to enable organ specific viewing quality optimisation, guaranteeing the highest quality of X-ray images.

[more information...]



nach oben

X-ray detectors for Amadeo Z motorised systems

list of the available X-ray detectors

Here you can find a list of the available X-ray detectors. Different types and sizes of X-ray detectors allow an individual configuration of the system.

[to the overview...]
