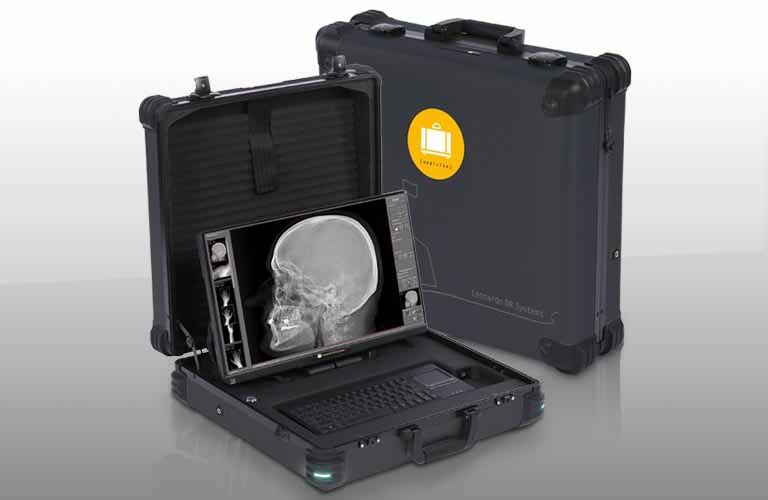

Leonardo DR mini III

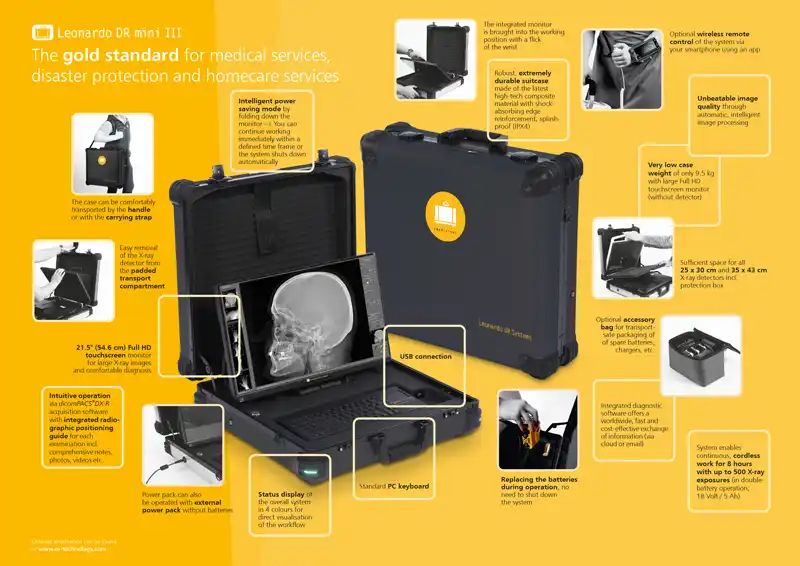

The gold piece of our Leonardo X-ray case series combines everything you want from a contemporary, highly functional X-ray system. The Leonardo DR mini III is fantastically light. You can X-ray endlessly without recharging and view the razor-sharp X-ray images on an anti-glare 21.5" Full HD touchscreen monitor.
The detector made of almost indestructible, flexible carrier material and 100 µm resolution completes this exceptional X-ray case, specially designed for human medicine.*
*Detailed information, figures and explanations can be found here.
| Leonardo DR mini III | with wireless CsI flat panel detector 14“ x 17“ |
 | |
| Large images | Antiglare 21,5" (54.6 cm) Full HD touchscreen |
| Extremely long battery life | Up to 500 shots without charging |
| Very low case weight | Despite large HD monitor only 9.5 kg (plus detector) |
| Razor-sharp X-ray images | thanks to globally proven image processing |
| detector | Wireless X-ray detector 35 x 43 cm (14" x 17"), CsI scintillator and 100 μm resolution* *other detectors possible |
| Brilliant | Exchange of batteries during operation, no need to shut down the system |
| Continuous | System enables continuous, cordless work for 8 hours with up to 500 X-ray exposures (in double-battery operation; 18 volts / 5 Ah) |
| Flexible | X-ray case can also be operated with external power supply without batteries* * suitable for emergency mode only |
| Useful | Intelligent stand-by mode activated when closing the monitor - you can continue working immediately within a defined time frame or the system shuts down automatically |
| Sophisticated | Intuitive operation via dicomPACS®DX-R acquisition software with integrated X-ray assistant |
| Durable | Robust, extremely durable case made of the latest high-tech composite material with shock-absorbing edge reinforcement, splash-proof (IPX4) |
| Easy | The case can be transported with the handle or the carrying strap |

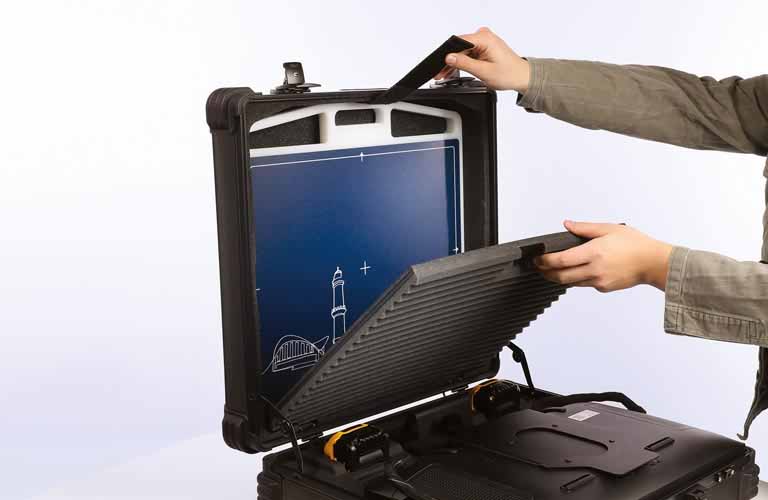

| Generous | Sufficient space for all 35 x 43 cm X-ray detectors incl. protection box |
| Clearly | Status display of the entire system in four colours for direct visualisation of the workflow |
| Extensive | Optional accessory bag for transport-safe packing of spare batteries, chargers, etc. |
| Wireless operation | Optional wireless remote control of the system via your smartphone using the app. |

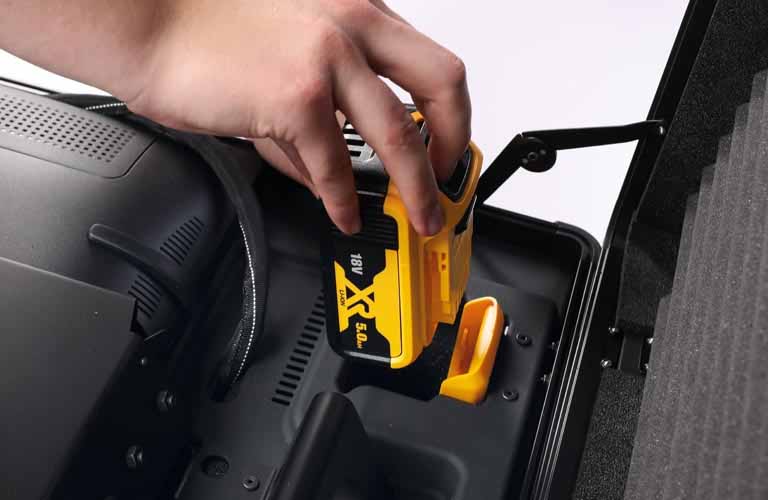

A completely new concept for the power supply has been developed for the Leonardo DR mini III, allowing you to choose the batteries. Depending on intended use, you can X-ray for 3.5, 8.5 or unlimited hours.
Batteries can be changed during operation.
Advantage: No shutdown of the system is necessary.
Batteries are not discharged when the case is switched off.
Advantage: Case is ready for immediate use, even if it has not been used for a long time.
Unit automatically switches to stand-by mode when the monitor is-closed.
Advantage: After changing the location, the computer does not have to be restarted.
The standard rechargeable batteries can be bought in almost any DIY store worldwide.
Advantage:
Battery set (small)
18 Volt/2 Ah for a operating time of approx. 3.5 hours and approx. 200 X-ray exposures (0.35 kg/battery)
Battery set (large)
18 Volt/5 Ah for a operating time of approx. 8.5 hours and approx. 500 X-ray exposures (0.62 kg/battery)
 | At the heart of each Leonardo system is the dicomPACS®DX-R acquisition and diagnostic software with the integrated X-ray positioning guide developed by OR Technology. |
| Here you can find a list of the available X-ray detectors. Different types and sizes of X-ray detectors allow an individual configuration of the system. |
 | Amadeo P - Practical portable and light-weight generators
|
 | dicomPACS®MobileView – the web-based viewer for mobile devices |
 | ORCA – storage of medical data (images and documents) as well as sharing via the internet |
 | dicomPACS® – the sophisticated and high-tech image management solution |
 | X-ray tables for stationary digital X-ray imaging |
 | VersariX – the portable mounting system for X-ray detectors |
 | Trolley stands and cassette holder for digital X-ray |
+49 381 36 600 500
info@or-technology.com
Product info X-ray case Leonardo DR mini III
Robust X-ray case - the gold standard of the Leonardo series - combines X-ray detector technology with powerful diagnostic and acquisition software
Product overview Digital X-ray in human medicine
Product portfolio of OR Technology: Digital Radiography and Image Management - A guide for medical practices, clinics and hospitals
| Compact lightweight X-ray case |
|
| CsI X-ray detector 35 x 43 cm (14" x 17") wireless | Wireless X-ray! |
| Leonardo DR mini III software package | with dicomPACS®DX-R, the professional console software with modern graphical user interface with basic software features and integrated X-ray assistant for correct setting technique for each examination, included:
|
| Battery set (small or large) |
|
 | Wireless remote control |
 | Protection case 1417 |
 | Accessories bag |
