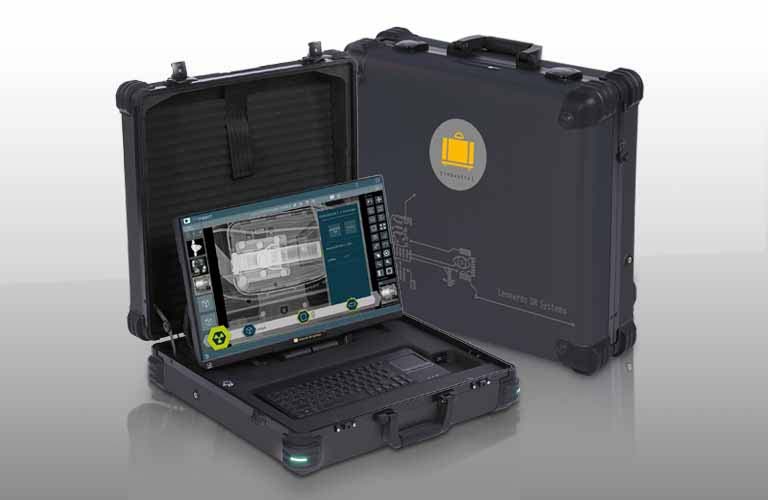

The gold standard for industry

The gold piece of our Leonardo X-ray case series combines everything you want from a contemporary, highly functional X-ray system. The Leonardo DR mini III is fantastically light. You can X-ray endlessly without recharging and view the razor-sharp X-ray images on an anti-glare 21.5" Full HD touchscreen.

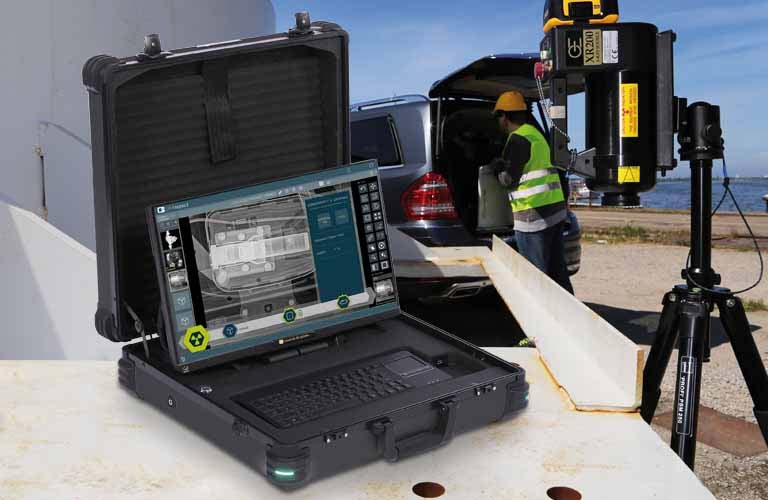

The wireless, intelligent NDT detectors complete this exceptional X-ray case designed specifically for workpiece testing and non-destructive testing*.

*Detailed specifications, figures and explanations can be found here.



nach oben

Two versions of the Leonardo DR mini III system are available:

Leonardo DR mini III

with wireless X-ray detector 10" x 12"
(recording area 25 x 30 cm)

Leonardo DR mini III

with wireless X-ray detector 14" x 17"
(recording area 35 x 43 cm)

nach oben

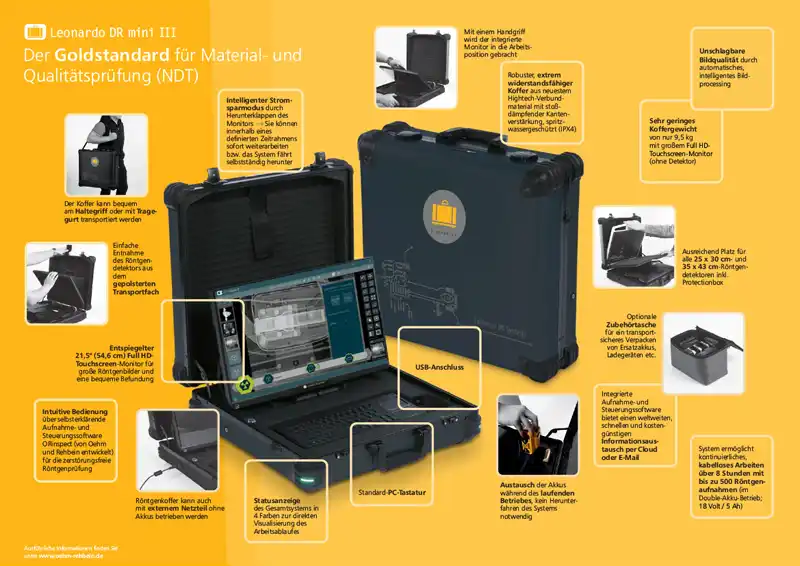

Features & benefits of the Leonardo DR mini III system

All the benefits at a glance

All the advantages of the Leonardo DR mini III
Large images

Antiglare 21,5" (54.6 cm) Full HD touchscreen

Extremely long battery life

Up to 500 shots without charging

Very low case weight

Despite large HD monitor only 9.5 kg (plus detector)

Razor-sharp X-ray images

thanks to worldwide proven image processing

Flexible detector sizes

Sufficient space for all 25 x 30 cm and 35 x 43 cm X-ray detectors

Brilliant

Exchange of batteries during operation, no need to shut down the system

Continuous

System enables continuous, cordless work for 8 hours with up to 500 X-ray exposures (in double-battery operation; 18 volts / 5 Ah)

Useful

Intelligent stand-by mode activated when closing the monitor - you can continue working immediately within a defined time frame or the system shuts down automatically

Sophisticated

Intuitive operation via self-explanatory ORinspect acquisition and control software (developed by OR Technology) for non-destructive X-ray inspection

Durable

Robust, extremely durable case made of the latest high-tech composite material with shock-absorbing edge reinforcement, splash-proof (IPX4)

Easy

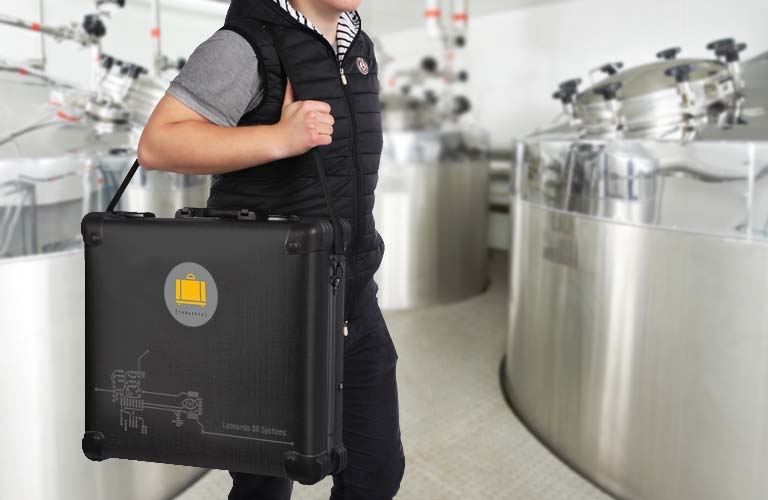

The case can be transported with the handle or the carrying strap

Generous

Sufficient space for all 25 x 30 cm and 35 x 43 cm X-ray detectors incl. protection box

Clearly

Status display of the entire system in four colours for direct visualisation of the workflow

Extensive

Optional accessory bag for transport-safe packing of spare batteries, chargers, etc.

Flexible

X-ray case can also be operated with external power supply without batteries*

* suitable for emergency mode only

nach oben

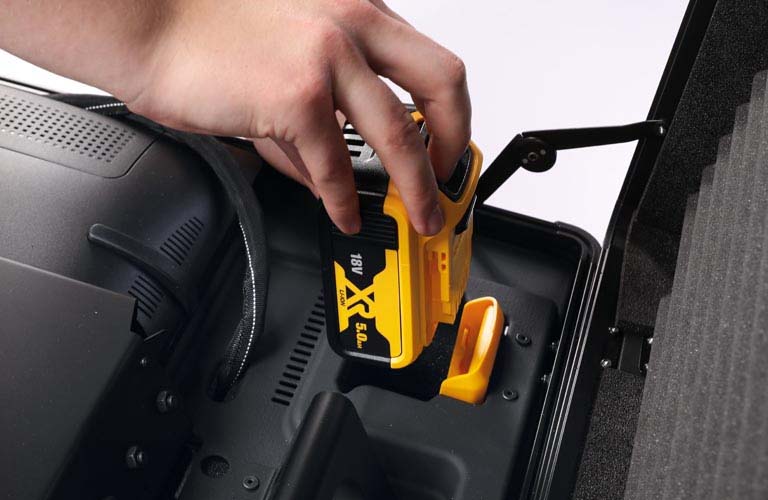

Extended operating time through intelligent battery concept

A completely new concept for the power supply has been developed for the Leonardo DR mini III, allowing you to choose the batteries. Depending on intended use, you can X-ray for 3.5, 8.5 or unlimited hours.

Batteries can be changed during operation.
Advantage: No shutdown of the system is necessary.

Batteries are not discharged when the case is switched off.
Advantage: Case is ready for immediate use, even if it has not been used for a long time.

Unit automatically switches to stand-by mode when the monitor is-closed.
Advantage: After changing the location, the computer does not have to be restarted.

The standard rechargeable batteries can be bought in almost any DIY store worldwide.
Advantage:

  • no expensive special parts with complex logistics
  • choice of large or small batteries is possible enabling user to save weight or extend operating time as required.
  • With low financial investement, several battery sets can be used and, depending on requirements, an unlimited runtime can be achieved



Small battery pack for the Leonardo DR mini III X-ray system

Battery set (small)
18 Volt/2 Ah for a operating time of approx. 3.5 hours and approx. 200 X-ray exposures (0.35 kg/battery)

Large battery pack for the Leonardo DR mini III X-ray system

Battery set (large)
18 Volt/5 Ah for a operating time of approx. 8.5 hours and approx. 500 X-ray exposures (0.62 kg/battery)

nach oben

Acquisition and control software for X-ray images

Software for non-destructive testing

The heart of each Leonardo NDT system is the  ORinspect X-ray acquisition and control software developed by OR Technology.

The software controls X-ray generators and X-ray units of various manufacturers, providing a smooth and structured workflow. A intuitive and user friendly GUI (graphical user interface), operated by touchscreen or mouse, completes the system.

The professional image processing can be adapted to individual user needs and offers outstanding image quality. It has been specially developed to enable material-specific optimisation, guaranteeing the highest quality of X-ray images.

[more information...]

nach oben

X-ray detectors for Leonardo DR mini III systems

X-ray detectors for the NDT sector

Here you can find a list of the available X-ray detectors. Different types and sizes of X-ray detectors allow an individual configuration of the system.

[to the overview...]

nach oben

Do you still have questions?

Is the Leonardo DR mini III the right portable X-ray system for you?
Let's find out together.
Contact us+49 381 36 600 500 Send us an emailinfo@or-technology.com
contact
OR Technology - contact



nach oben
  • Product info X-ray case Leonardo DR mini III
    Robust X-ray case - the gold standard of the Leonardo series - combines X-ray detector technology with powerful diagnostic and acquisition software

  • Product overview Strong Workmate for Non-Destructive Testing
    Digital systems from OR Technology deliver X-ray images of the highest quality to detect even the smallest deviations during daily inspections.

nach oben

Technical specifications of the Leonardo DR-mini III

Compact lightweight X-ray case
  • Extremely durable case made of the latest high-tech composite material with shock-absorbing edge reinforcement, splash-proof (IPX4), lockable
  • Total weight: approx. 9.5 kg (includes complete X-ray case, monitor and electronics plus X-ray detector),
  • Anti-glare 21.5" full HD touch screen and standard PC keyboard
  • powerful PC with latest Windows version
  • Carrying strap for comfortable transport
  • LED status display of the entire system in four colours

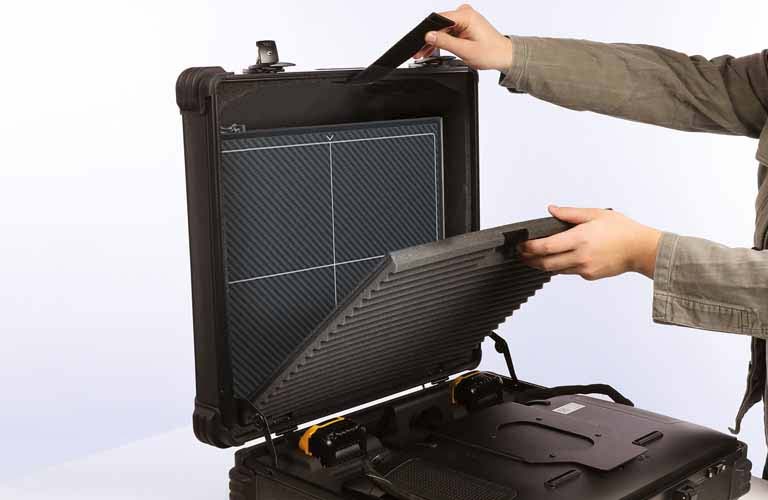

  • padded transport compartment for one detector, max. 14" x 17"
  • Dimensions: approx. 545 x 515 x 194 mm (W x D x H)
  • Connections: 1 x USB, 1 x LAN, 1 x WLAN, 1 x Bluetooth, 1 x DC socket
X-ray detector flex
25 x 33 cm (13“ x 10“) wireless

Wireless X-ray!
World's first Csl X-ray detector with flexible substrate - nearly indestructible

X-ray detector
35 x 43 cm (14" x 17") wireless

Wireless X-ray!
Best image quality in the examination and test sector

Leonardo DR mini III software package

with dicomPACS®DX-R, the professional console software with modern graphical user interface with basic software features and integrated X-ray assistant for correct setting technique for each examination, included:

  • dicomPACS®DX-R DICOM Send SCU
  • dicomPACS®DX-R DICOM Patient-CD
  • dicomPACS®DX-R Cognition Optimised Processing
Battery set (small or large)
  • Battery set (small) 18 Volt / 2 Ah for a operational time of approx. 3.5 hours and approx. 200 X-ray exposures (0.35 kg/battery)
  • Battery set (large) 18 Volt / 5 Ah for a operational time of approx. 8.5 hours and approx. 500 X-ray exposures (0.62 kg/battery)
nach oben

Optional add-ons

Amadeo P

Amadeo P – Practical portable and light-weight generators
Due to their low weight, user-friendly operation and integrated interface they can be used in numerous applications of material testing.



PACS MobileView material testing

dicondePACS®MobileView – the web-based viewer for mobile devices
The web-based viewer contains all the basic functions for viewing images. You can view images virtually with any browser on mobile devices. dicondePACS®MobileView offers a previously unknown degree of mobile freedom, the images are available anywhere.



PACS measurement material testing

dicondePACS – the sophisticated and high-tech image management solution
The dicondePACS® software acquires, processes, transfers and archives images. Thanks to a diverse array of special functions, the dicondePACS® can be customised for many applications.



Trolley stands and cassette holder

Trolley stands and cassette holder for digital X-ray
A range of trolley stands and cassette holders can be found here.
