The portable X-ray backpack system for radiographic testing

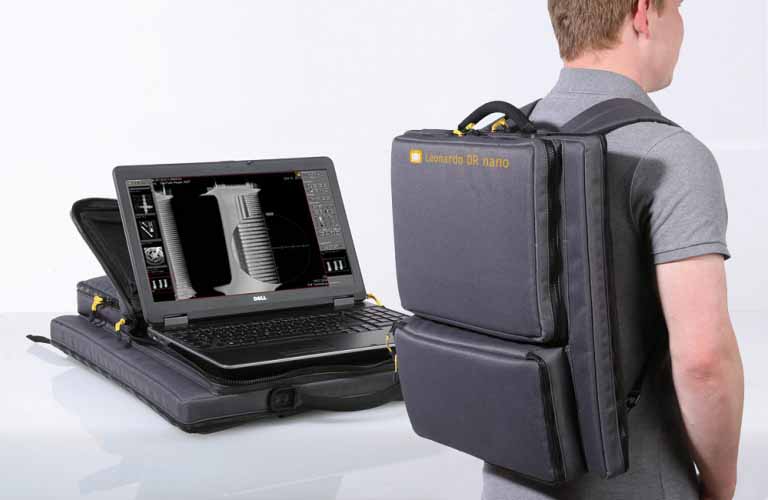

Just sling the lightweight Leonardo DR nano backpack over your shoulder and head off to your next materials testing or quality inspection appointment. OR Technology‘s portable and digital Leonardo DR nano delivers high-quality X-ray images perfect for detecting even the smallest deviations during daily inspections. The portable and robust complete system weighs only approx. 9 kg and is your best bet for quick and reliable X-ray imaging at even the most remote locations.

The Leonardo DR nano consists of only two components: a wireless X-ray detector and a laptop with the professional acquisition and analysis software, ORinspect. The system is ideal for mobile radiographic testing, any time and any place. Getting tangled up in annoying cables is a thing of the past!  The Leonardo‘s straightforward user interface makes it easy for staff to generate excellent X-ray images.

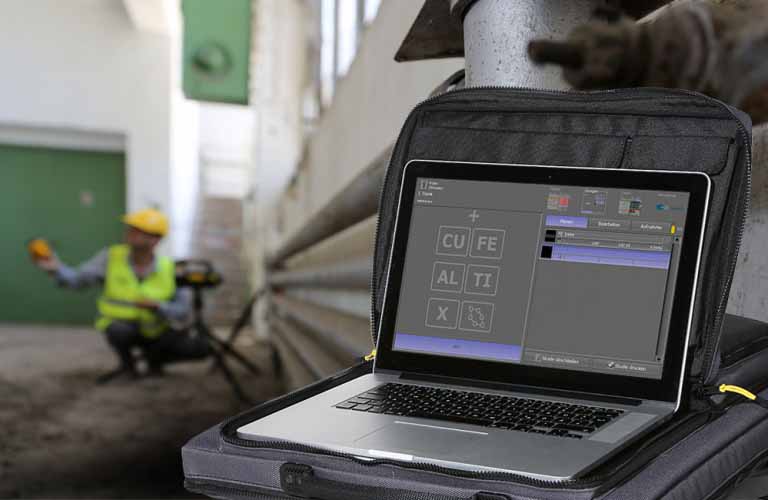

The Leonardo DR nano system is also well suited for use in confined spaces. The X-ray unit and detector have a wireless connection to the software on the laptop. The X-ray detector and laptop can be stationed up to 10 m apart and still function optimally.
