Fantastically light-weight X-ray bag with detector & notebook

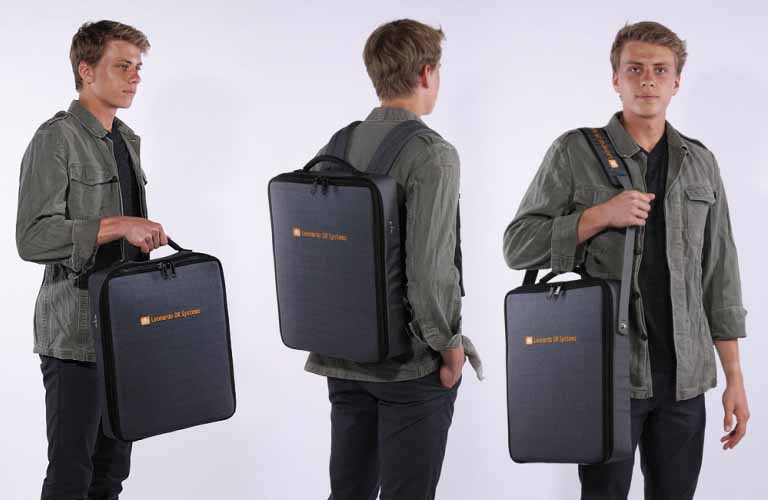

Comfortable, sturdy X-ray bag - also suitable as shoulder bag or backpack - only with X-ray detector and notebook

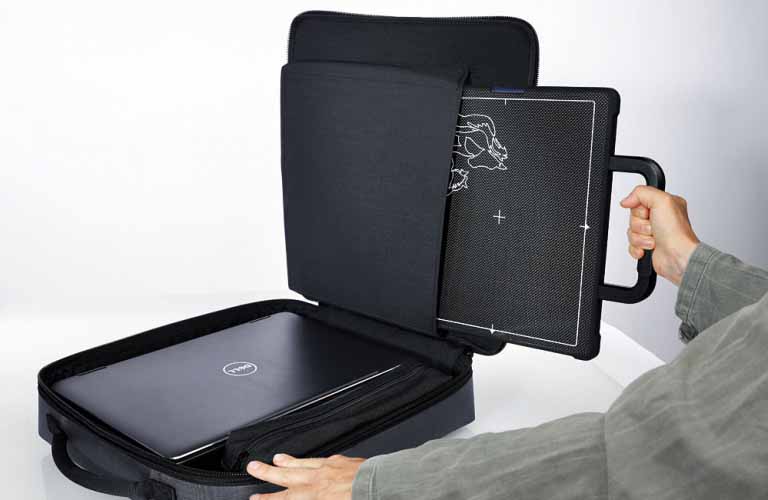

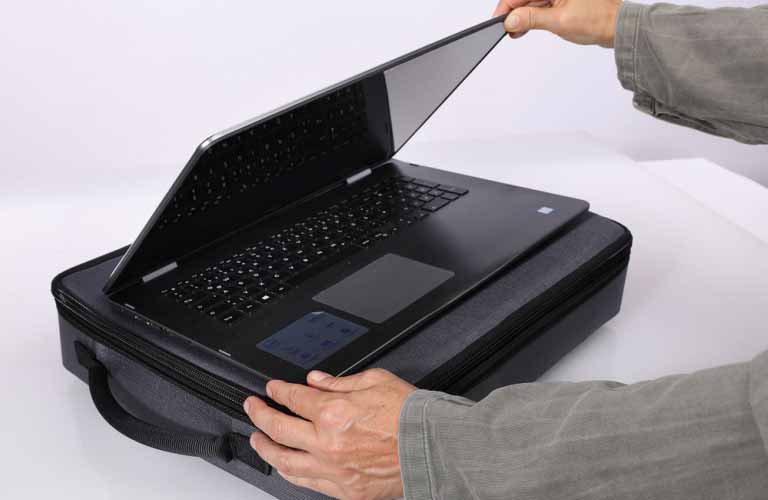

The 17" notebook and the X-ray detector 12" x 10" (30 x 24 cm) with protection box are very space-saving and well padded in the robust bag. With a complete weight of only approx. 7.1 kg, the Leonardo DR pico can be easily transported to any location. The handy x-ray bag is also suitable for stationary use in veterinary practices or horse clinics. You can complete the system with a battery-operated, portable X-ray generator (from approx. 6.8 kg). Simple handling is sufficient and the X-ray solution is quickly set up on site and ready for use.

The simple operation of the acquisition and diagnostic software from OR Technology pre-installed on the notebook enables even less radiologically experienced personnel to work easily and intuitively. Optimum X-ray images are thus guaranteed. In addition, the integrated multimedia X-ray positioning guide assists with patient positioning.




nach oben

Comfortable, sturdy X-ray bag - also suitable as shoulder bag or backpack - only with X-ray detector and notebook





nach oben

The Leonardo DR pico system is available in the following variant:

Leonardo DR pico

mobile X-ray system with wireless X-ray detector, format 12" x 10" (30 x 24 cm)

nach oben

Features & Benefits of the Leonardo DR pico System

Wireless

quickly deployable and hassle free

Small

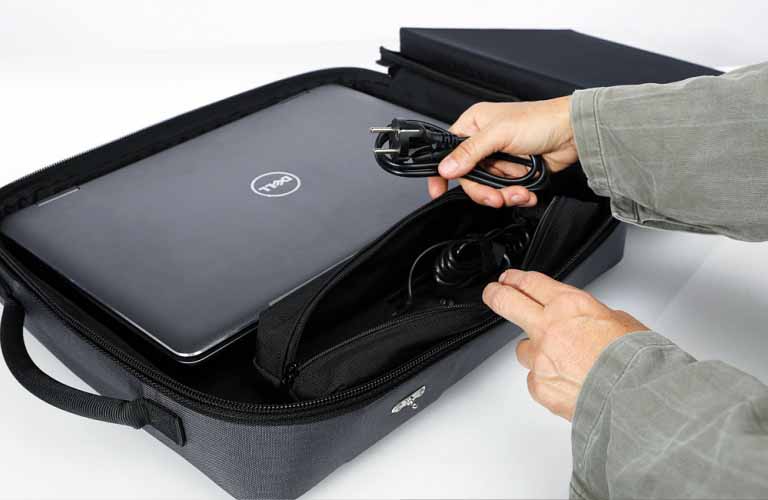

weight only approx. 7.1 kg, easy to transport – space-saving placement of the system components (spare batteries, cables etc.) in a sophisticated, sturdy bag

Quick to set up

Once on site, the X-ray solution can be assembled quickly and easily

Perfectly packaged

tidy and safe transport - components are stored in precisely fitting compartments that can be closed separately, all-round, robust insulation material has a shock-absorbing effect.

Excellent

high-quality X-ray detector based on a caesium iodide (CsI) scintillator – top image quality even at low X-ray doses

User-friendly:

self-explanatory OR Technology acquisition software dicomPACS®DX-R including free special measurement functions

Fast

shortly after taking the shot (6 - 8 seconds), the X-ray image is already available for viewing and diagnostic evaluation

Remote controlled

work comfortably with dicomPACS®DX-R remote control - use your smartphone as a remote control device for taking and viewing images during the X-ray procedure (optional). You can find more information about the Remote Control app here.

Cleverly designed

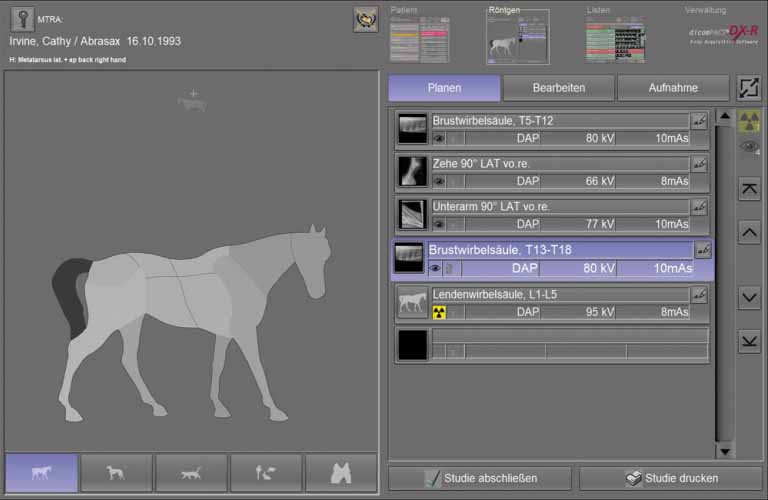

integrated X-ray positioning guide (for examinations of cats, dogs and horses)

Accessibility

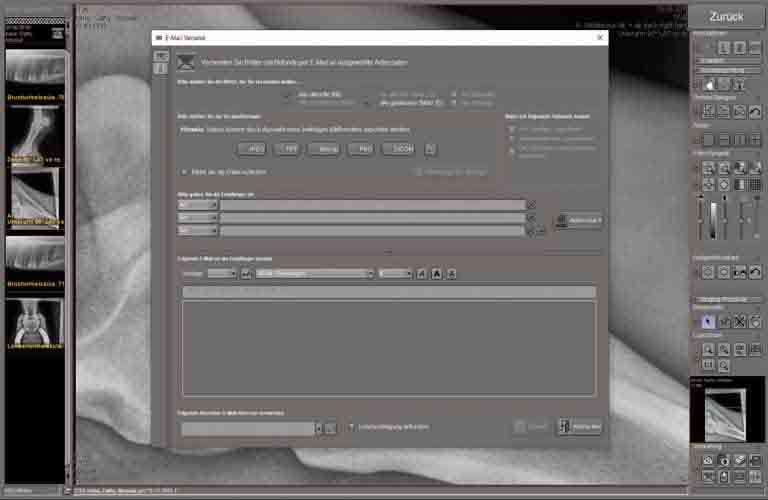

integrated diagnostic software offers a worldwide, fast and cost-effective exchange of information (via ORCA® cloud or email)

One of a kind

Special analysis tools for MMP (Modified Maquet Procedure), automatic HD measurements (AI-support), TTA, TPLO, heart diagnostics, etc. are provided at no extra cost

Well documented

professional software for detailed and comprehensive documentation of X-ray services during horse purchase examinations according to “X-ray guideline 2018" [only for Germany] (optional)

nach oben

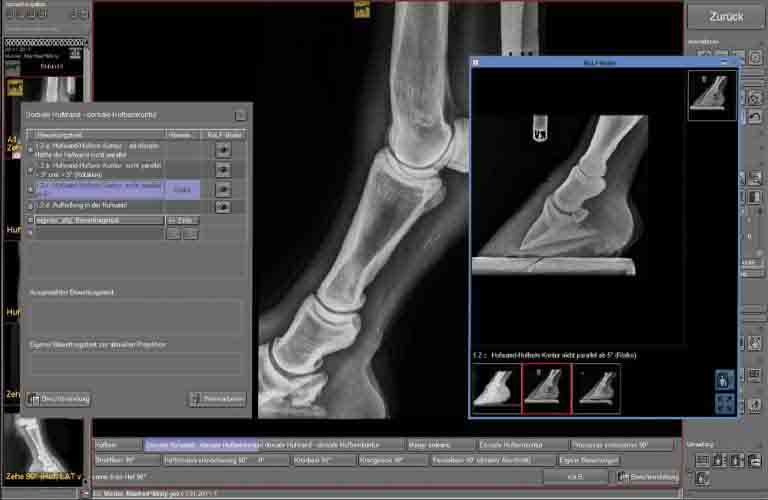

Acquisition and diagnostic software for X-ray images

Acquisition and diagnostic software for X-ray images

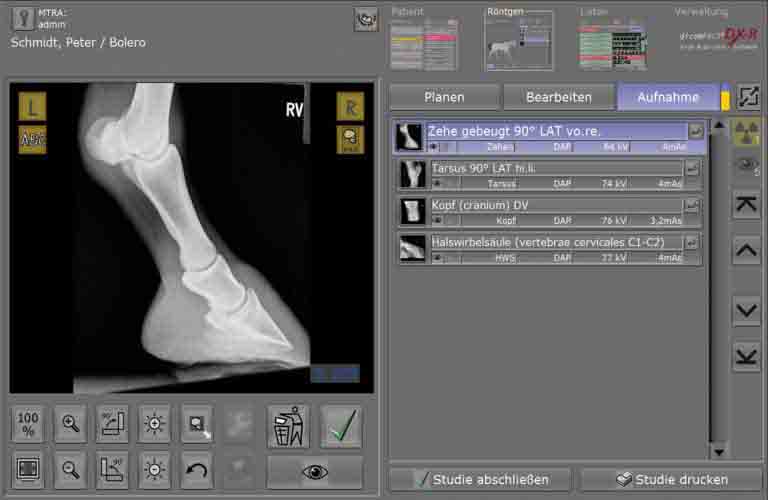

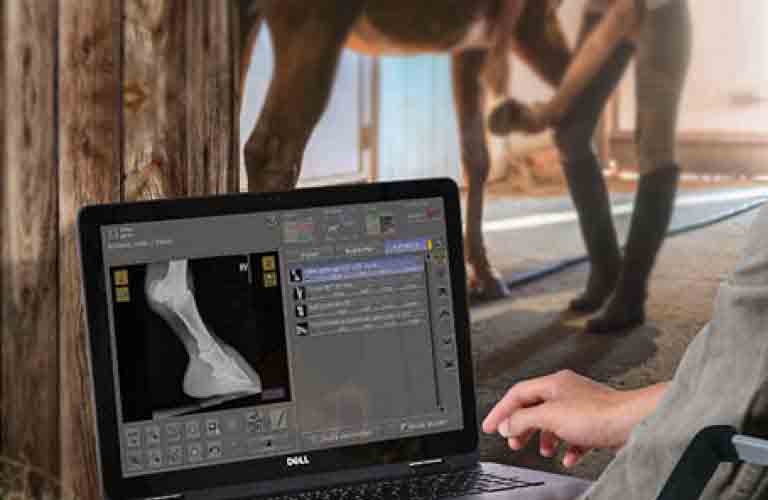

At the heart of each Leonardo system is the dicomPACS®DX-R acquisition and diagnostic software with the integrated X-ray positioning guide developed by OR Technology.

The software controls X-ray generators and X-ray units of various manufacturers, providing a smooth and structured workflow. A simple and user friendly GUI (graphical user interface), operated by touchscreen or mouse, completes the system.

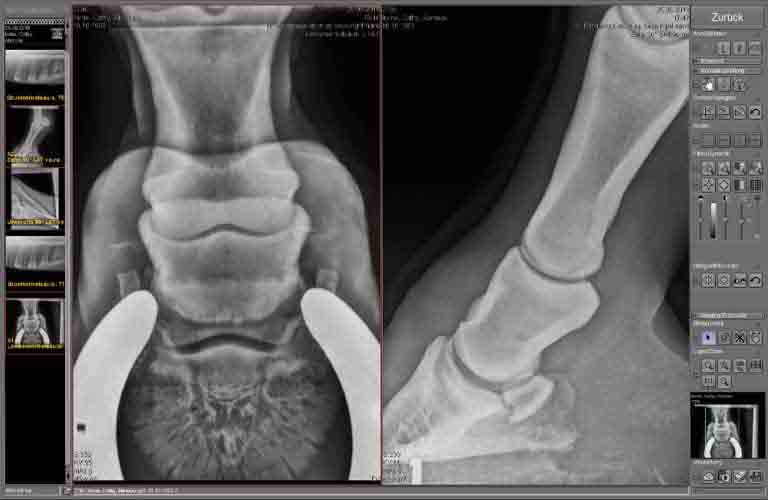

The professional dicomPACS®DX-R image processing can be adapted to individual user needs and offers outstanding image quality in human and veterinary medicine. It has been specially developed to enable organ specific viewing quality optimisation, guaranteeing the highest quality of X-ray images.

[more information...]


nach oben

X-ray detectors for Leonardo DR pico systems

list of the available X-ray detectors

Here you can find a list of the available X-ray detectors. Different types and sizes of X-ray detectors allow an individual configuration of the system.

[to the overview...]

nach oben

Any further questions?

Is the Leonardo DR pico the right digital X-ray case for your veterinary practice or clinic?
Let's find out together.
Icon - call us+49 381 36 600 500 Icon - write us a mailinfo@or-technology.com
Contact
OR Technology - Call our Sales-Team



nach oben
  • Product information X-ray bag Leonardo DR pico for horse clinic and stable
    The Leonardo DR pico can be easily transported to any location - the handy X-ray bag is also suitable for stationary use in veterinary practices or horse clinics

  • Product overview veterinary medicine
    Digital X-ray imaging - guide for vet clinic and practice

  • Article in the ‘pferde spiegel’ magazine: ‘Digital radiography and X-ray guideline (only in German)
    Author Dr. Thomas Weinberger, equine clinic Burg Müggenhausen: Evaluation of X-ray images as part of a purchase examination – software support to prevent errors

  • Example of report module for X-ray services relating to equine prepurchase examinations
    The required X-ray images, including all modifications such as zoom, measurements and annotations, and are automatically added to the respective diagnosis for documentation in the prepurchase report, the layout is automatically compiled [only for Germany]

nach oben

Optional add-ons

Amadeo P high frequency X-ray units for portable X-ray in veterinary medicine

Amadeo P high frequency X-ray units for portable X-ray in veterinary medicine
Its low weight, user-friendly operation and the integrated interface for using the X-ray unit with a digital system enable various fields of application in small animal practices and equine clinics.

Report module for X-ray services relating to equine prepurchase examinations


Report module for X-ray services relating to equine prepurchase examinations
This dicomPACS®vet report module enables the quick compilation of reports by automatically assembling X-ray images. It follows the “X-ray guideline” by the German organisations “Gesellschaft für Pferdemedizin e.V.” (non-profit organsation for equine medicine) and “Bundestierärztekammer e.V.” (Federal association of veterinarians) [only for Germany].

dicomPACS®MobileView - The web-based viewer for mobile devices or PCs for vets


dicomPACS®MobileView - The web-based viewer for mobile devices or PCs for vets
As a virtually independent browser, it allows the viewing of image material on mobile devices also outside a veterinary clinic or a practice. The vet staff can access all image material from the dicomPACS®vet system worldwide via a network connection.

ORCA® - The DICOM cloud for veterinary images and documents


ORCA® - The DICOM cloud for veterinary images and documents
ORCA® (OR Technology Cloud Archiving) is a software solution designed to make everyday work in veterinary practices and animal clinics easier, cheaper and more efficient. ORCA archives medical images and documents on its remote servers using highest security standards, and enables these data to be shared with other veterinarians and authorised persons online.

PACS Basispaket vet

dicomPACS®vetthe sophisticated and high-tech image management solution
dicomPACS®vet  is an easy to operate, well thought out instrument for daily diagnoses. The software includes the acquisition, processing, transfer and archiving of image material and can easily be integrated into all common administration systems.

Roentgentische Vet


X-ray tables for stationary digital X-ray imaging
Premium patient tables take into account the diversity of patients in veterinary practices and clinics. All offered X-ray tables of the newest generation allow for easy and comfortable work.



Wandstative Wandhalterungen Vet

Trolley stands and cassette holder for digital X-ray
The variety of patient sizes poses a major challenge for manufacturers of X-ray technology and accessories. Trolley stands and cassette holder must be adapted to their patients. A range of trolley stands and cassette holders can be found here.






nach oben

Technical specifications for Leonardo DR pico

Transport backpack incl. accessories bag for chargers

•  For 12" x 10" (30 x 24 cm) detectors with or without protective cover
•  External dimensions approx. 40 x 46 x 9 cm
•  Padded and with sturdy protective frame including two shoulder straps
    for comfortable carrying on your back
•  With a detachable shoulder strap
•  Water-repellent - offers safety in the rain
•  All important accessories have their own custom-fit
    compartments with separate closure

Notebook
  • SSD hard disk
  • 17" or 15" high-resolution display depending on equipment
  • Intel ® CPU
  • at least 8 GB RAM
  • USB 3.0
  • Wireless LAN
Direct radiography detector 24 x 30 cm (10“ x 12“) wireless

Wireless X-ray imaging! Fits into an existing X-ray system without requiring
modification (in conformity with the X-ray film cassette), fast charging, long-life batteries

Battery charger including batteries

• fast charging, long-life batteries, including battery charger
• charging time of battery: 3 hours

Leonardo DR pico software package

The dicomPACS® DX-R professional console software sports a modern graphical user interface, integrated radiographic positioning guide, and includes the following modules:

  • dicomPACS® DX-R DICOM Send SCU
  • dicomPACS® DX-R DICOM Patient CD
  • dicomPACS® DX-R Cognition Optimised Processing
nach oben

Optional components for the Leonardo DR pico system

dicomPACS®DX-R remote control

App for smartphone as remote control device for taking and viewing images during the X-ray process

Holders for smartphone (Apple)

Choice of two types of holders available for taking and viewing images:
•  Upper arm cuff
•  Bracket for portable X-ray generator

Protective case with handle

Rugged housing incorporates multiple protective layers and a circumferential rubber border to absorb shock and increase load capacity

Amadeo P high frequency X-ray units

Portable high-frequency X-ray units for high-quality X-ray images:
Low weight and user-friendly operation enable various fields of
application in small animal practices and equine clinic
