Wireless X-ray imaging	Quickly deployable and hassle free The wireless X-ray detector is available in one sizes (14 x 17 inches). When used together with a battery-powered HF X-ray generator, X-ray imaging is completely wireless and portable.
The smallest and lightest DR system	Easy to transport, quick to set up The extremely compact Leonardo DR nano is stowed in a well-designed and sturdy carrying case (also functions as a backpack). Weighing just under 9 kg (including laptop, accessories and detector), the entire unit can easily be carried to remote locations. Portable battery-operated X-ray generators (> 6.8 kg) make the system fully operable in the field. Once on site, the Leonardo DR nano can be assembled quickly and easily.
Perfectly stowed	Well organized and safe for transport All components are stowed in custom-fitted and sealable compartments in the lightweight backpack. All-round padding offers shock protection to the flat panel detector and laptop.
Excellent image quality	Fantastic images thanks to state-of-the-art technology The wireless detector boasts outstanding image quality with up to 5 lp/mm resolution.
Quick	Quick patient processing and well-documented workflow X-ray images are available for viewing and diagnosis within 6-8 seconds of triggering.
User-friendly	Straightforward handling even for unspecialised staff The professional dicomPACS^®DX-R acquisition software sports an intuitive and modern graphical user interface. All examinations are conducted comfortably at a single monitor. The possibility of diagnosis supported by an automatic, AI-assisted thorax screening (by a qualified third-party provider) is also included in the software (optional).
Ingenious design	Patient positioning made easier The integrated X-ray positioning guide helps you choose the perfect positioning during the examination of human and animal patients. The guide suggests parameter adjustments and presents helpful photos, videos and X-rays images.
Always on call	Rapid diagnosis by a specialist The integrated diagnosis software provides global, rapid and inexpensive consultations (telemedical solutions via e-mail or cloud services) in compliance with safety and privacy regulations. The only requirement is an internet connection.
Remote controlled	You can use a mobile terminal, such as your smartphone, via a special app as a remote control to plan and view images. Attached to your arm or the X-ray generator, it also serves as a control element allowing the user to gain a first impression of the images taken without having to move to the actual console workstation (tablet PC). You can find more information about the Remote Control app here.

	Amadeo P – Practical portable and light-weight generators Due to their low weight, user-friendly operation and integrated interface they can be used in numerous applications in practices, clinics and for out-patient purposes.
	dicomPACS^®*MobileView* - the web-based viewer for mobile devices The web-based viewer contains all the basic functions for viewing images. You can view images virtually with any browser on mobile devices. dicomPACS^®MobileView offers doctors and nursing staff a previously unknown degree of mobile freedom in the workplace inside and outside of hospitals or practices, with the radiological image material available from anywhere.
	*ORCA* – storage of medical data (images and documents) as well as sharing via the internet ORCA^® (OR Technology Cloud Archiving) is a cloud-based platform specially designed for storing, viewing and sharing medical images and documents. ORCA offers two exciting applications: ORCA Archive and ORCA Share.
	*dicom*PACS^® – the sophisticated and high-tech image management solution With dicomPACS^® all images generated by digital X-ray, CT, MRI and ultrasound devices, as well as diverse documents (e.g. doctor's letters, medical findings, medical history, faxes) are stored in a digital patient folder and readily accessible.
	X-ray tables for stationary digital X-ray imaging Premium patient tables take into account the diversity of patients’ sizes and weights. All offered X-ray tables of the newest generation allow for easy and comfortable work.
	VersariX – the portable mounting system for X-ray detectors VersariX is the portable flat panel detector mounting system for X-ray examinations and weighing only some 400 grams, it can be attached anywhere, like on room or wardrobe doors, walls, trees etc. The sturdy hook used to suspend the X-ray flat panel detector allows virtually stepless height adjustment.
	Trolley stands and cassette holder for digital X-ray The variety of patient sizes poses a major challenge for manufacturers of X-ray technology and accessories. Trolley stands and casette holder must be adapted to their patients. A range of trolley stands and cassette holders can be found here.

Carrying case (backpack) and accessories bag	For 14" x 17" detectors with and without protection box Outer dimensions: 50 x 49 x 12 cm Well-padded, with a sturdy protective frame and shoulder strap Water-repellent for rain protection All important accessories have their own sealable, custom-fit compartments
Tablet PC or laptop	SSD hard disk 17" or 15" high-resolution display depending on equipment Intel ® CPU at least 8 GB RAM USB 3.0 Wireless LAN
Direct radiography detector 35 x 43 cm (14" x 17") wireless	Wireless X-ray imaging! Fits into existing Bucky tray without modifications (in place of X-ray film cassettes)
Battery charger and rechargeable batteries	Fast-charging, long-lasting batteries plus battery charger Battery charge time: 3 hours
Leonardo DR nano software package	The dicomPACS® DX-R professional console software sports a modern graphical user interface, integrated radiographic positioning guide, and includes the following modules: dicomPACS® DX-R DICOM Send SCU dicomPACS® DX-R DICOM Patient CD dicomPACS® DX-R Cognition Optimised Processing

X-ray detector mounting system VersariX	Height-adjustable, suited for patients in standing position X-ray detector can be attached with or without protective casing Detector holder (400g) fits in Leonardo carrying case
Detector casing for imaging feet	Protective casing for 14" x 17" detector Max. load for entire surface: 1040 kg Max. point load: 146 kg/mm
Protective case for detector	Available in one size: For 35 x 43 cm (14“ x 17“) detectors Available with and without grid
High-frequency X-ray generator TR 90/20 battery	5 kW, 110 kV / 100 mA High-performance capacitor for a stable and reliable power supply Manual remote control Touch screen, digital display, LED Dimensions: 254 x 225 x 423 mm; Weight: 19.6 kg
High-frequency X-ray generator Amadeo P-110/100H	5 kW, 110 kV / 100 mA High-performance capacitor for a stable and reliable power supply Manual remote control Touch screen, digital display, LED Dimensions: 254 x 225 x 423 mm, Weight: 19.6 kg
High-frequency X-ray generator Amadeo P-100/35HB	Power rating 2.4 kW, kV range in 1 kV steps: 40 to 100 kV mAs range 0.4-100 mAs, focus 1.2 x 1.2 mm Connection voltage 130-260 V (adjusts automatically) Dimensions: 250 x 214 x 349 mm; Weight 14.2 kg (including battery)
High-frequency X-ray generator Amadeo P-200/ 400	Monoblock units with fully automatic adjustment Power rating from 6 kW to 100 kV (Amadeo P 400 up to 120 kV) Dimensions: 37.0 cm x 24.5 cm x 21.5 cm; Weight: 11.5 kg
Mobile stand for portable X-ray unit	Swivel arm: 750 mm; Weight: approx.15 kg Swivel range: 5 ° to the left , 5 ° to the right Height adjustment up to 1.71 m For X-ray units weighing 5 -15 kg Dimensions: 30 x 35 x 105 cm (when folded together)
Mobile X-ray tables and stands	A wide range of modern X-ray tables and carrying systems is available. Feel free to contact us for more information!
Wireless remote control	Possibility of wireless control of the digital X-ray system with the app "dicomPACS^®DX-R remote control" via smartphone or tablet incl. display of the worklist, preview of the captured image to check the shot etc. - directly from the app a new shot can be planned

portable X-ray backpack system -

wireless and flexible

The compact, portable

complete solution on board ship

The wonderfully light, portable X-ray backpack system on the high seas

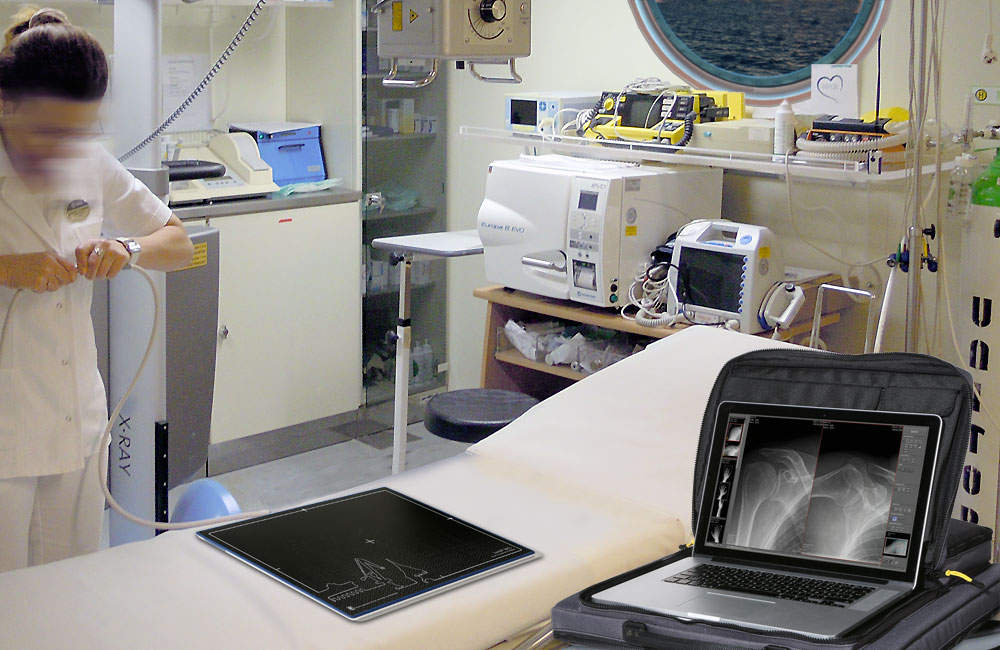

For medical emergencies on board: Portable, wireless X-ray system for use on the high seas

One versions of the Leonardo DR nano system are available:

Features & Benefits of the Leonardo DR nano System

Acquisition and diagnostic software for X-ray images

X-ray detectors for Leonardo nano systems

Any further questions?

Optional add-ons

Technical specifications for Leonardo DR nano

Optional components for the Leonardo DR-nano system
