CMOS Dental Detectors – outstanding X-ray images for dental imaging

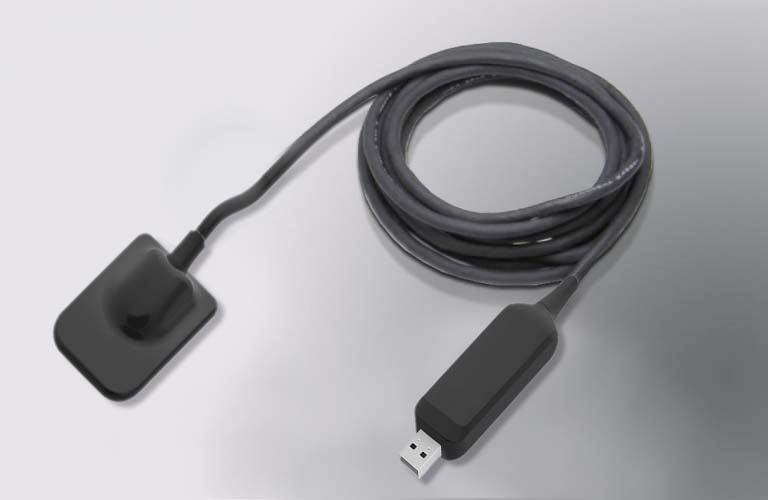

The Pluto dental detectors are available in two sizes. Pluto Size 1 and Size 2 are digital, intraoral sensors and have a CMOS sensor with a resolution of 20 μm. The CsI scintillator of the sensors ensures optimal resolution. The detectors feature an ergonomic design with smooth edges, rounded corners and a flexible cable for maximum patient comfort.

An easy-to-use high-speed USB interface allows easy connection to a PC without the need for an additional control unit.

The sensor used is an easy-to-use X-ray detector with cable. This is dust and waterproof (comparable to IP68).

The integrated dicomPACS^®DX-R acquisition software is easy to operate via a touch screen or laptop and adapts to the user's workflow. The X-ray images are available with almost no release delay and convince with the highest quality.

Features & Benefits of the dental detectors

High resolution and excellent image quality
AED - no need for adjustment in the X-ray unit
Suitable for dental X-rays as well as for high-resolution images of animal paws
Extremely cost effective
Robust, dust and waterproof according to IP68
Large dynamic range
Lightweight

Acquisition and diagnostic software for X-ray images

At the heart of each Medici system is the dicomPACS^®DX-R acquisition and diagnostic software with the integrated X-ray positioning guide developed by OR Technology.

The software controls X-ray generators and X-ray units of various manufacturers, providing a smooth and structured workflow. A simple and user friendly GUI (graphical user interface), operated by touchscreen or mouse, completes the system.

The professionaldicomPACS^®DX-R image processing can be adapted to individual user needs and offers outstanding image quality in human and veterinary medicine. It has been specially developed to enable organ specific viewing quality optimisation, guaranteeing the highest quality of X-ray images.

[more information...]

Product information CMOS Dental Detector
Due to its modern CMOS sensor, the detector is ideally suited for use in X-ray diagnostics in the field of NDT.
Product information CMOS Dental Detector
Due to its modern CMOS sensor, the detector is ideally suited for use in X-ray diagnostics in the field of NDT.

Optional add-ons

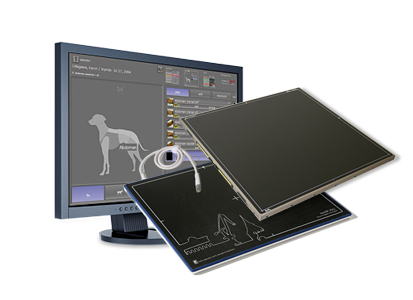

	Medici flat panel upgrade kit (DR) for your existing X-ray system Are you looking for a digital detector system that connects to your existing X-ray unit, is easy to install, straightforward to operate, and generates professional and reproducible images? If yes, then our Medici system is your best bet!

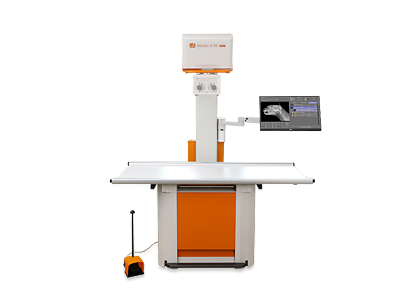

	Space-saving complete system with rotating monitor arm for use with standard wall sockets The Amadeo V-DR mini X-ray system has been developed especially for the requirements of veterinary practices and is particularly suited for small animal practices. The patient table is equipped with a floating tabletop and silent brakes.

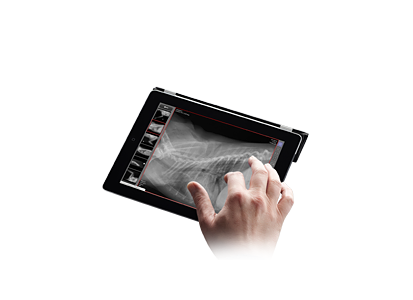

	dicomPACS^®*MobileView* - The web-based viewer for mobile devices or PCs for vets As a virtually independent browser, it allows the viewing of image material on mobile devices also outside a veterinary clinic or a practice. The vets staff can access all image material from the *dicom*PACS^®vet system worldwide via a network connection.
	ORCA - The DICOM cloud for veterinary images and documents *ORCA* (OR Technology Cloud Archiving) is a software solution designed to make everyday work in veterinary practices and animal clinics easier, cheaper and more efficient. ORCA archives medical images and documents on its remote servers using highest security standards, and enables these data to be shared with other veterinarians and authorised persons online.

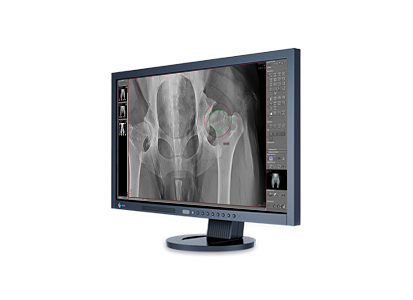

	*dicom*PACS^®**vet – the sophisticated and high-tech image management solution dicom**PACS^®vet is an easy to operate, well thought out instrument for daily diagnoses. The software includes the acquisition, processing, transfer and archiving of image material and can easily be integrated into all common administration systems.

Any further questions?

Can we digitalise your X-ray system with the Medici DR Dental upgrade set?
Let's find out together.

+49 381 36 600 500

info@or-technology.com
Contact

Technical details for the detectors

Pluto Size 1

Measurements: 38.5 mm x 25 mm x 5mm
Pixel size: 20 x 20 µm
Image size: 20 x 30 mm
Pixel format: 1500 (H) x 1000 (V)
Resolution: 20 Lp/mm
Scintillator type: CsI
Technology: CMOS
Interface: USB 2.0
Protection class: IP68

Pluto Size 2

Measurements: 40 mm x 31 mm x 4.5 mm
Pixel size: 20 x 20 µm
Image size: 26 x 36 mm
Pixel format: 1800 (H) x 1300 (V)
Resolution: 20 Lp/mm
Scintillator type: CsI
Technology: CMOS
Interface: USB 2.0
Protection class: IP68
