CMOS detectors for best high-resolution imaging in the NDT sector

The Pluto Size 1 and Size 2 detectors with their modern CMOS sensor were specially developed for general X-ray diagnostics in the NDT range. With a resolution of 20 Lp/mm, these detectors offer excellent image quality, as required in the aerospace industry, for example.

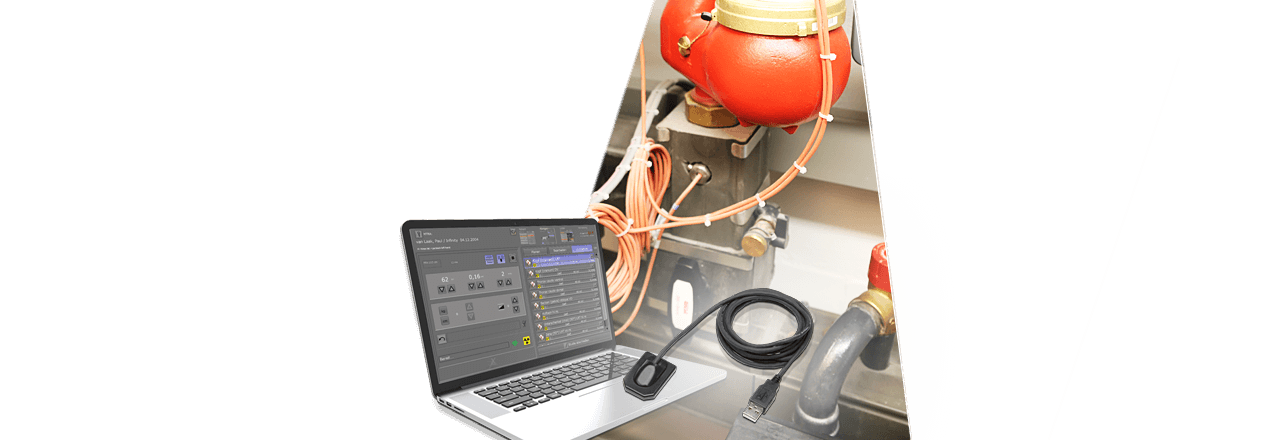

Due to the compact design, the CMOS detectors are also suitable for small tubes and pipes and can be placed in hard-to-reach places or in objects. The sensor surface is protected by a glass fibre plate and guarantees a long service life of the sensor. The easy-to-use X-ray detectors are connected via a USB interface and are dust and waterproof (comparable to IP68).

Easy to use via a touch screen or laptop, ORinspect acquisition and control software, already included in the Medici package, adapts to your workflow and provides X-ray images of the highest quality, with almost no trigger delay.

Features & benefits of the CMOS detectors

•   High resolution and excellent image quality
•   AED - no need for adjustment in the X-ray unit
•   Extremely cost effective
•   Robust, dust and waterproof according to IP67
•   Large dynamic range
•   Lightweight

ORinspect: Professional acquisition and control software for radiographic testing (RT)

The heart of each NDT system is the ORinspect X-ray acquisition and control software developed by OR Technology.

The software controls X-ray generators and X-ray units of various manufacturers, providing a smooth and structured workflow. A intuitive and user friendly GUI (graphical user interface), operated by touchscreen or mouse, completes the system.

The professional image processing can be adapted to individual user needs and offers outstanding image quality. It has been specially developed to enable material-specific optimisation, guaranteeing the highest quality of X-ray images.

[more information...]

Any further questions?

Can we digitalise your X-ray system with the Medici DR upgrade set?
Let's find out together.

+49 381 36 600 500

info@or-technology.com
Contact

Pluto Size 1 CMOS dental detektor
Due to its modern CMOS sensor, the detector is ideally suited for use in X-ray diagnostics in the field of NDT.
Pluto Size 1 CMOS dental detektor
Due to its modern CMOS sensor, the detector is ideally suited for use in X-ray diagnostics in the field of NDT.
Brochure Strong Workmate for Non Destructive Testing (RT)
Our portable digital systems generate images in the highest quality for detecting minimal deviations for your inspection requirements.

Optional add-ons

	The professional digital X-ray all-round solution for non-destructive radiographic testing The Amadeo NDT system is designed for non-destructive radiographic testing of tube and plate welds as well as for radiographic inspection of workpieces made of iron, aluminium, titanium, copper, plastic, etc.
	Medici DR systems – DR retrofits for your existing stationary X-ray system for materials testing and quality inspection With the Medici DR X-ray detector upgrade, work routines for materials testing and quality inspection become simpler and faster. Furthermore, the digital technology clearly leads to improved image quality and higher reproducibility. Our Medici DR systems are available for nearly every X-ray unit manufactured.
	Medici DR retrofits for your existing mobile X-ray system for materials testing and quality inspection With the Medici DR X-ray detector upgrade, work routines for materials testing and quality inspection become simpler and faster
	dicomPACS^®MobileView - the web-based viewer for mobile devices The web-based viewer contains all the basic functions for viewing images. You can view images virtually with any browser on mobile devices. *dicom*PACS^®MobileView offers a previously unknown degree of mobile freedom, the images are available anywhere.
	dicomPACS^® - the sophisticated and high-tech image management solution The dicomPACS^® software acquires, processes, transfers and archives images. Thanks to a diverse array of special functions, the dicomPACS^® can be customised for many applications in the security sector.

Technical details for the detector

Pluto Size 1

Measurements outline: 38.5 mm x 25 mm x 5mm
Pixel size: 20 x 20 µm
Image size: 20 x 30 mm
Pixel format: 1500 (H) x 1000 (V)
Resolution: 20 Lp/mm
Scintillator type: CsI
Technology: CMOS
Interface: USB 2.0
Protection class: IP68

Pluto Size 2

Measurements outline: 40 mm x 31 mm x 4.5 mm
Pixel size: 20 x 20 µm
Image size: 26 x 36 mm
Pixel format: 1800 (H) x 1300 (V)
Resolution: 20 Lp/mm
Scintillator type: CsI
Technology: CMOS
Interface: USB 2.0
Protection class: IP68

Subject to technical modifications

high-resolution radiography

for small tubes and pipes
