Leonardo DR mini II

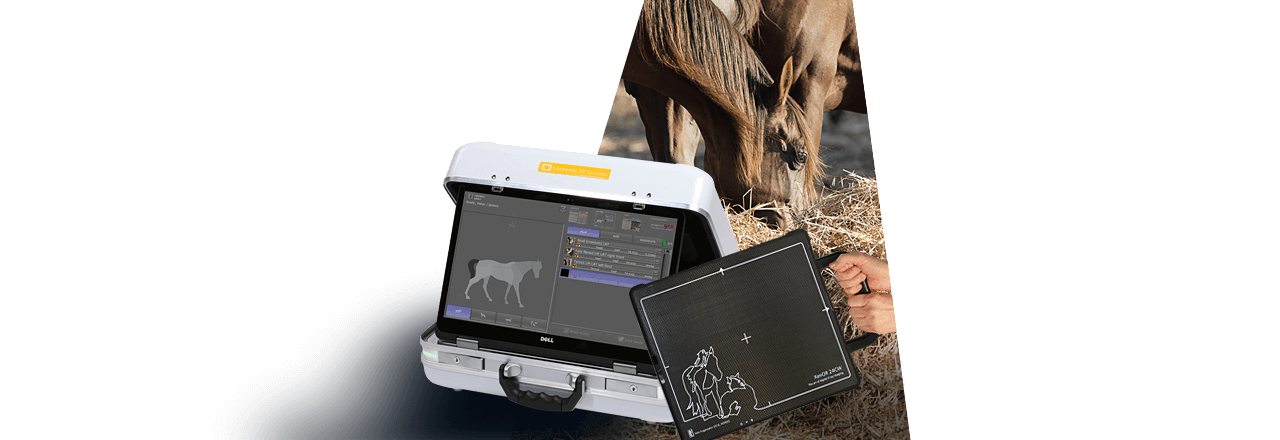

The newest model in our Leonardo series, the compact and versatile Leonardo DR mini II, combines X-ray detector technology with a high-performance acquisition and diagnostic software. Weighing only 8.9 kg, the system is one of the lightest suitcase X-ray solutions worldwide. The Leonardo DR mini II is designed for use in confined spaces as well as in the field, making it ideal for modern veterinarians. The suitcase system is the perfect solution for both stationary and portable radiography for mobile veterinary practices as well as equine and mixed animal clinics.
The Leonardo DR mini II is quick to set up and easy to use. Its built-in premium notebook with high resolution touchscreen monitor as well as integrated acquisition and diagnosis software guarantees excellent image display. The X-ray suitcase has two large LEDs clearly visible even from a distance of several meters. These LEDs indicate the software status, such as "Ready to expose". In addition, a signal tone sounds when the status changes. The notebook can easily be removed from its secured location within the case for use in an optimal ergonomic position or as a tablet during presentations.
An optional reporting module for pre-purchase X-ray examinations makes this system attractive for equine appraisal. The integrated diagnosis software also enables worldwide, fast and cost-effective information exchange (via cloud or email) in compliance with safety regulations for telemedical solutions. Only an internet connection is required.
| Leonardo DR mini II | mobile X-ray system with wireless CsI flat panel detector 12" x 10", |
| Leonardo DR mini II | mobile X-ray system with wireless CsI flat panel detector 14" x 17", |
| Ingeniously designed | wireless and battery-powered – designed for use in confined spaces as well as in the field |
| Wireless | battery-operated system can run continuously for over four hours – providing flexibility and maneuverability in difficult environments |

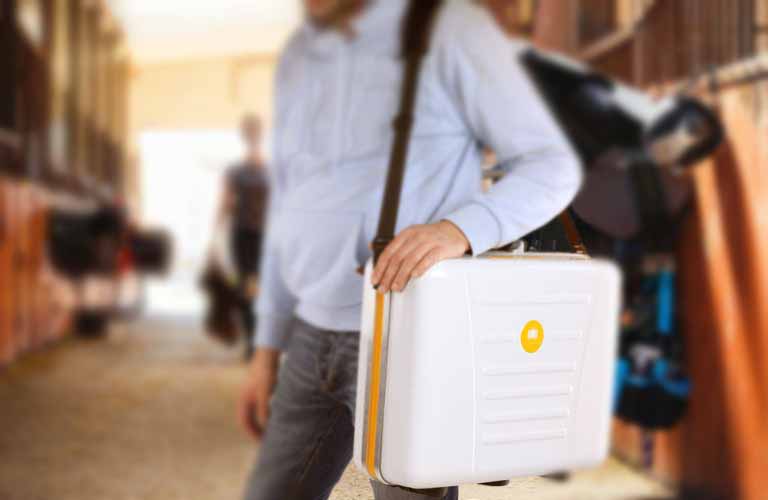

| Compact | weighing in at approx. 8.9 kg, the case fits behind any car seat |

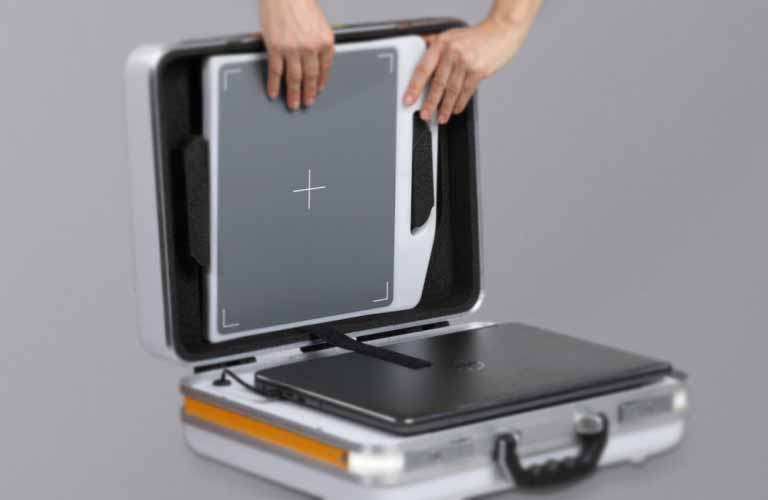

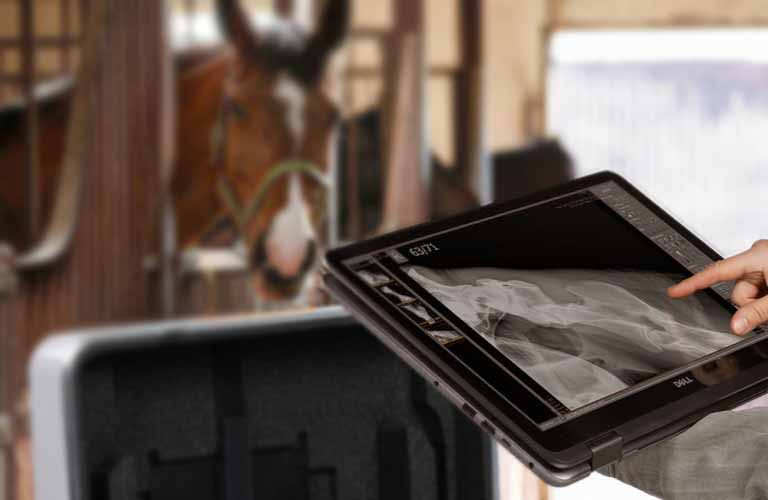

| Practical | laptop can easily be removed from its secured location within the case – for use in an optimal ergonomic position or as a tablet during presentations |
| Efficient | integration into your existing patient management system – patient data at the push of a button |
| Excellent | high-quality X-ray detector based on a caesium iodide (CsI) scintillator – top image quality even at low X-ray doses |
| User-friendly | self-explanatory OR Technology acquisition software dicomPACS®DX-R including free special measurement functions |
| Fast | shortly after taking the shot (6 - 8 seconds), the X-ray image is already available for viewing and diagnostic evaluation |
| Cleverly designed | integrated X-ray positioning guide (for examinations of cats, dogs and horses) |
| Accessibility | integrated diagnostic software offers a worldwide, fast and cost-effective exchange of information (via cloud or email) |
| One of a kind | Special analysis tools for MMP (Modified Maquet Procedure) automatic HD measurements (AI-support), TTA, TPLO, heart diagnostics, etc. are provided at no extra cost |
| Well documented | professional software for detailed and comprehensive documentation of X-ray services during horse purchase examinations according to “X-ray guideline 2018" (only for Germany) |
| Visible | Software status display via large 4-colour LEDs on the corners of the suitcase |
| Audible | Audio output on status change |
| Remote controlled | You can use a mobile terminal, such as your smartphone, via a special app as a remote control to take and view images. Attached to your arm or the X-ray generator, it also serves as a control element allowing the user to gain a first impression of the images taken without having to move to the actual console workstation (tablet PC). You can find more information about the Remote Control app here. |
 | At the heart of each Leonardo system is the dicomPACS®DX-R acquisition and diagnostic software with the integrated X-ray positioning guide developed by OR Technology. |
Our Leonardo cases are manufactured exclusively in Germany. Final assembly and quality control are realised at our production facility in Rostock.This way we can guarantee the best product quality for you.
Software and product development are carried out in-house at OR Technology, too, since current developments show that we need to think and act in managable ways. You benefit from an independent supplier who provides you with everything from a single source, ensures service and support for the entire life of the X-ray systems and guarantees manageable delivery times.
Our hard-working employees from the production department during the final assembly of the Leonardo DR mini II cases:
 |  |  |
| Here you can find a list of the available X-ray detectors. Different types and sizes of X-ray detectors allow an individual configuration of the system. |
+49 381 36 600 500
info@or-technology.com
Product information X-ray suitcase Leonardo DR mini II
The compact suitcase solution - the newest model in our Leonardo series combines X-ray detector technology with a high-performance acquisition and diagnostic software
Product overview veterinary medicine
Digital X-ray imaging - guide for vet clinic and practice
Article in the ‘pferde spiegel’ magazine: ‘Digital radiography and X-ray guideline (only in German)
Author Dr. Thomas Weinberger, equine clinic Burg Müggenhausen: Evaluation of X-ray images as part of a purchase examination – software support to prevent errors
Example of report module for X-ray services relating to equine prepurchase examinations
The required X-ray images, including all modifications such as zoom, measurements and annotations, are automatically added to the respective diagnosis for documentation in the prepurchase report, the layout is automatically compiled
Product information protection box for X-ray detector XenOR 24CW
This protective housing has been especially developed for the XenOR 24CW X-ray detector in order to protect it from external impacts and strong concussions. The robust housing comprises numerous protective layers and a circumferential rubber surround so that impacts can be absorbed and the load rating increased.
Digital X-ray images have the advantage that exact measurements can be taken at the monitor and the image quality can be improved by a number of manipulations. dicomPACS®DX-R now offers some special functions. Detailed information on the special functions for veterinary medicine can be found here.
• Modified Maquet Procedure (MMP)
• Pre-operative planning with the prosthesis documentation module
• TTA (Tibial Tuberosity Advancement) measuring tool
• HD measuring technique for dogs
• TPLO (Tibial Plateau Leveling Osteotomy) measuring tool
• Measuring the distraction index
• Buchanan's Vertebral Heart Score

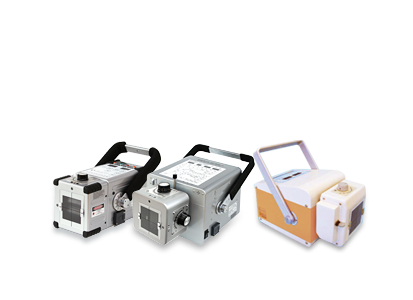

 | Amadeo P high frequency X-ray units for portable X-ray in veterinary medicine |
 |
|
 |
|
 |
|
 | dicomPACS®vet – the sophisticated and high-tech image management solution |
 |
|
 | Mobile stands and cassette holder for digital X-ray
|
| Compact and light suitcase | Total weight: 8.9 kg (including the complete suitcase, notebook, power supply and electronics), size: ca. 49 x 39.5 x 18.5 cm, inclusive detachable strap for convenient transport |
| Notebook | Convertible 2-in-1 premium notebook with large monitor, newest 8th generation Intel® Core™ i7 processor, 16 GB RAM, full HD touchscreen monitor, keyboard with background lighting, SSD hard disk 512 GB |
| Flat panel detector 24 x 30 cm (10“ x 12“) wireless* | Wireless X-ray imaging! |
| Flat panel detector 35 x 43 cm (14" x 17") wireless* | Wireless X-ray imaging! * Various types of flat panel on request |
| Leonardo DR mini II software package | The dicomPACS®DX-R professional console software sports a modern graphical user interface, integrated radiographic positioning guide and the following modules:
|
| Extension for battery operation | Allows working without power connection up to an average of 4-6 hours in normal mode |
| Wireless synchronisation | for any X-ray generator |
| Protective case for detector | Available for all three versions
Available with and without grid |
| Carrying case for 35 x 43 cm (14" x 17") detector | Available for DR mini II [1417] and DR mini II [1417] |
| Amadeo P high frequency X-ray system | Portable high frequency X-ray units for high-quality X-ray images: Low weight and user-friendly operation enable various fields of application in small animal practices and equine clinic |
